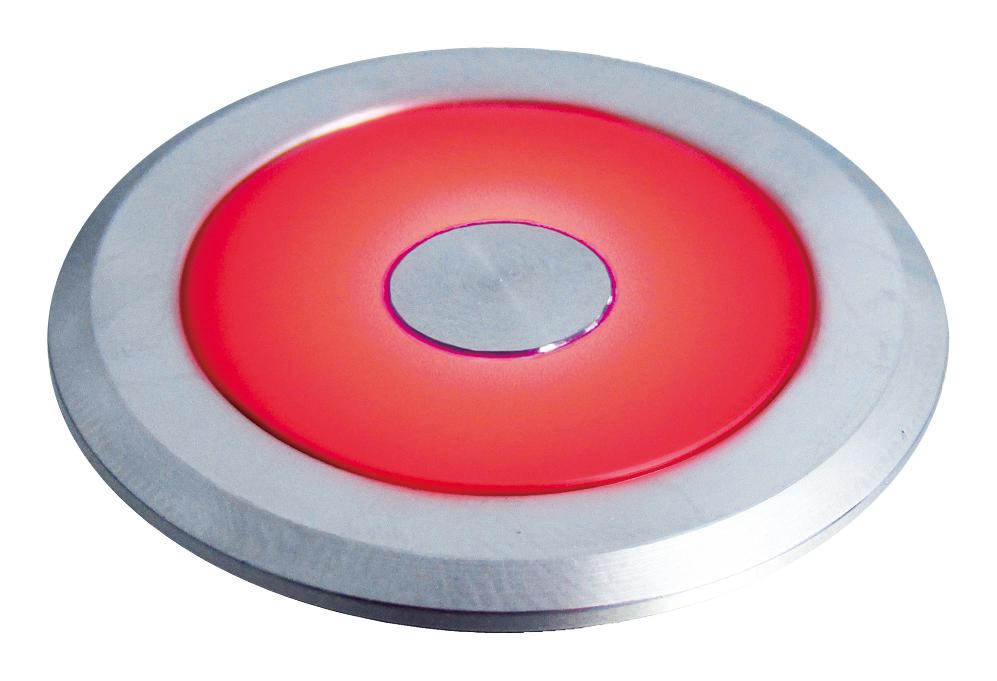

MULTICOMP PRO MC010982 Vandal Resistant Switch
The Flash Illuminated Vandal Resistant Switch offers durability with its metal bezel-ring and silhouette-ring designs, suitable for demanding environments. It features illuminated LED indicators in green, red, and blue, and is rated for 600V and 210A. The switch supports both momentary and maintained contact operations, with high dielectric strength and resistant to vibration and shocks within industrial settings. It has an IP65 degree of protection, ensuring dust and water resistance, making it ideal for control panels, industrial machinery, and vandal-resistant applications worldwide.
MULTICOMP PRO MC010982 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min
- Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: 1-25°C to +55°C
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Damage limits: 1,000 m/s²; Operating limits: 100 m/s²
- Mechanical Life: Momentary 1,000,000 cycles; Maintained 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Buy Multicomp Vandal Resistant Switch Part Number MC010982 Online
Enhance your industrial controls with the durable, vandal-resistant switch featuring LED illumination in multiple colors, rated for 600V/210A. Its IP65 waterproof design, high dielectric strength, and mechanical longevity make it suitable for demanding environments like factories and outdoor installations. Easy to install with a robust metal bezel-ring, this switch supports both momentary and maintained operation modes. Trust this high-quality switch for consistent, long-lasting performance in control panels, industrial automation, and vandal-prone locations. Purchase online now for swift delivery and dependable operation.
Order your Multicomp Series MC010982 vandal-resistant illuminated switch today and ensure reliable control with high durability and IP65 sealing.
