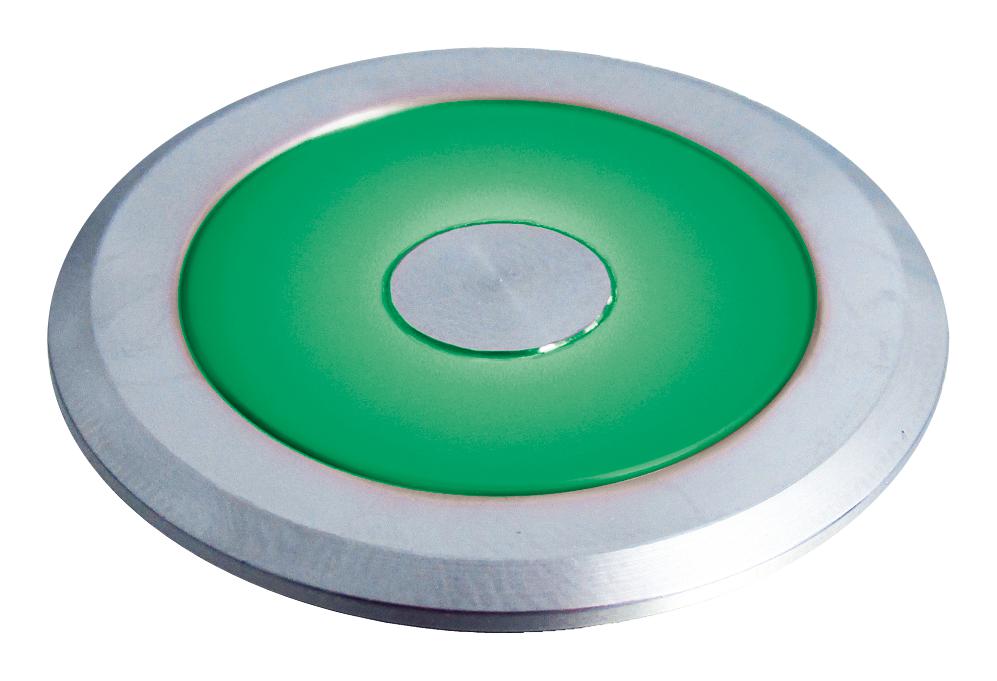

MULTICOMP PRO MC010984 Vandal-Resistant Illuminated Switch
This illuminated vandal-resistant switch features a metal bezel ring and silhouette-ring design, rated for 600V and 210A with LED indicators in green, red, or blue. It has a durable aluminium construction, dielectric strength of 2,000V AC/min between live and ground, and 1,000V AC/min between terminals. The switch offers high mechanical and electrical life spans, IP65 protection, and is suitable for harsh environments with temperature and vibration resistance. Available with various mounting hole options (22mm/30.5mm), it is ideal for industrial control panels needing reliable illumination and vandal resistance.
MULTICOMP PRO MC010984 Vandal-Resistant Illuminated Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminium
- Dielectric Strength: 2,000V AC / min between live part and ground, 1,000V AC / min between terminals of the same poles
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: 1°C to +55°C
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1,000 m/S² damage limits, 100 m/S² operating limits
- Mechanical Life: Momentary: 1,000,000 cycles, Maintained: 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Premier Series Switch: Vandal-Resistant Illuminated Control Switch MC010984
Order the Premier Series vandal-resistant illuminated switch today and enjoy the benefits of durable aluminium construction, LED indicators, high dielectric strength, and protection against harsh environmental conditions. Ideal for industrial control panels requiring vandal resistance and reliable illumination, this switch supports high current and voltage ratings while offering long mechanical and electrical life spans. Purchase online now to ensure seamless integration into your control systems, backed by fast shipping and trusted quality assurance.
Buy Premier Series MC010984 vandal-resistant switch now and experience unmatched durability, illumination, and industrial-grade reliability.
