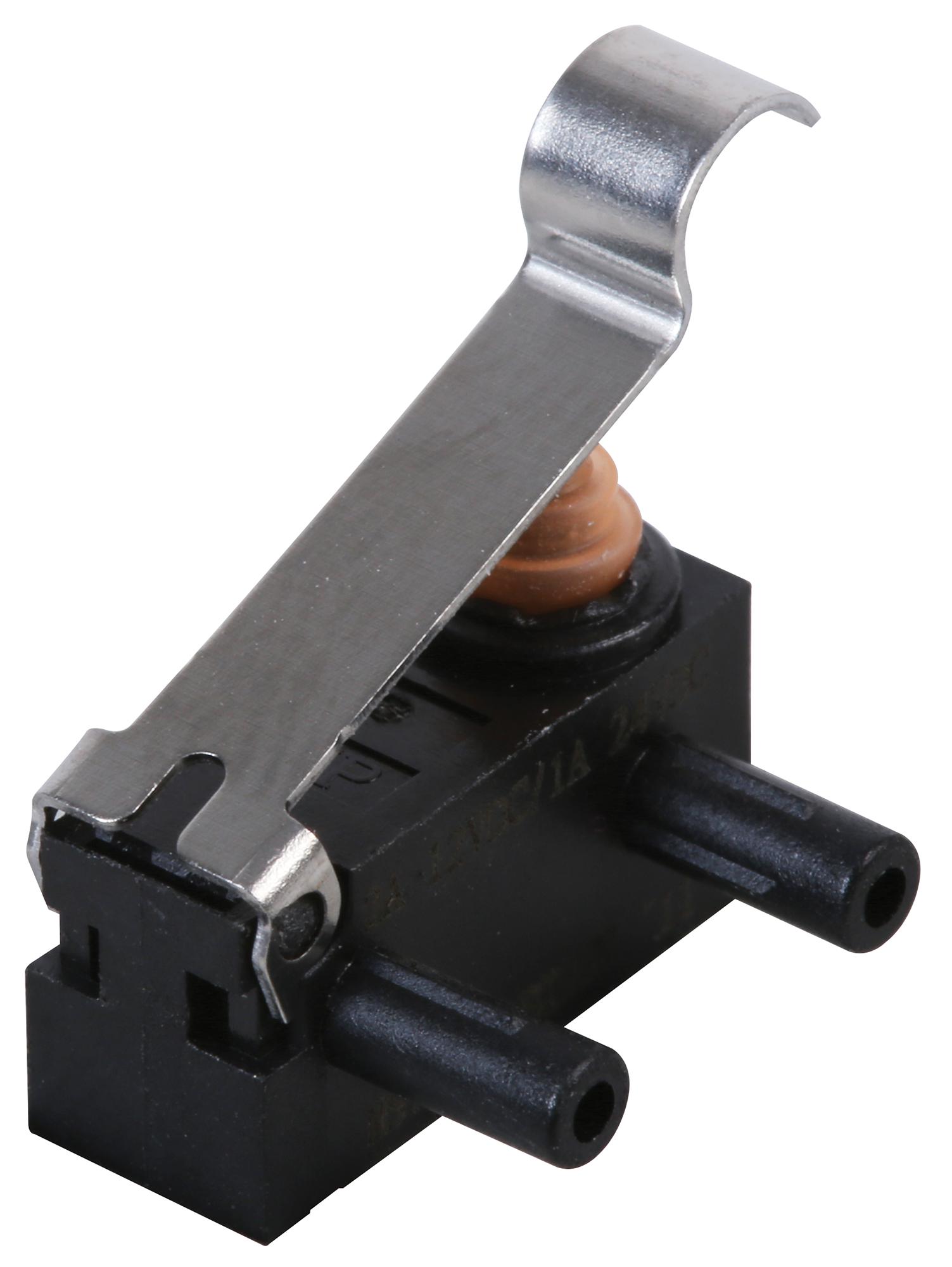

MULTICOMP PRO MP006226 sealed microswitch
These snap action microswitches are compact, sealed IP67-rated devices designed for reliable switching in automation, automotive, and household appliances. Featuring SPDT contact form, various lever options, and a maximum operating temperature of +85°C, they support resistive loads up to 2A at 12V DC. With a mechanical durability of at least 1,000,000 cycles, they offer high electrical durability, excellent insulation resistance, and dielectric strength. Suitable for through-hole or PCB mounting, these switches are ideal for rugged industrial and consumer applications requiring precise, repeatable actuation.
MULTICOMP PRO MP006226 sealed microswitch Specifications:
- Contact Rating: 2A at 12V DC
- Mechanical Durability: 1,000,000 Cycles Min
- Electrical Durability: 100,000 Cycles Min
- Contact Resistance: 150mΩ Max
- Insulation Resistance: 100MΩ Min (at 500V DC)
- Dielectric Strength: 600V AC between terminals
- Operating Temperature: -40°C to +85°C
- Sealed IP67
- Various lever options available
- Support for through-hole and PCB mounting
- Resistive load support up to 2A at 12V DC
- Overtravel: 1.4mm to 2.5mm depending on model
- Actuator options include pin plunger, lever, simulated roller
- Maximum operating force: 50-122gf
- Operating voltage range: up to 12V DC
