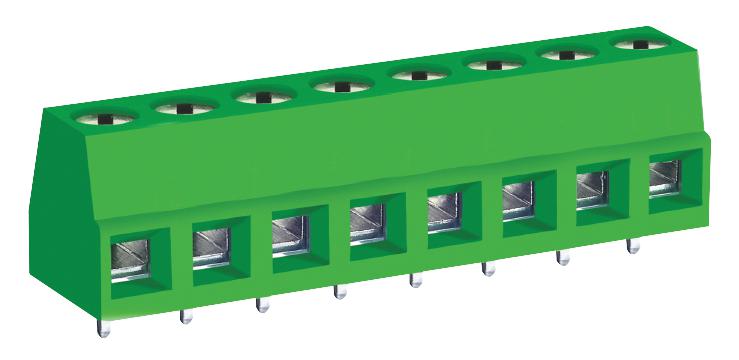

MULTICOMP PRO MC000033 5mm Screw PCB Terminal
The 5mm Screw PCB Terminal is a modular connector designed for reliable electrical connections on printed circuit boards. Featuring a green polyamide insulative body and steel nickel-plated cage clamps for durability, it supports wire ranges from 12AWG to 26AWG with a wire strip length of 4mm to 5mm. Rated for 216A at 300V AC, it withstands insulation voltages up to 2000V AC and operates from -40°C to +105°C. Its compact design and high current capacity make it ideal for industrial, automation, and control applications, ensuring secure, maintenance-free connections.
MULTICOMP PRO MC000033 5mm Screw PCB Terminal Specifications:
- Rating Current: 216A
- Voltage: 300V AC
- Minimum Insulation Withstand Voltage: 2000V AC
- Insulation Resistance: >2000MO at 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Range: 12AWG to 26AWG
- Wire Strip Length: 4mm to 5mm
- Screw Torque: 7lb-inch
- Material: Insulating Body Polyamide 66 - Green
- Cage Clamp: Steel Ni Plated
- Terminal: Brass Tin Plated
- Screw: Steel Ni Plated
- Pitch: 5mm (0.197 inch)
Buy the Acme 8141015 – Reliable 5mm Screw PCB Terminal for Industrial Applications
Purchase the 5mm Screw PCB Terminal online today and ensure reliable, high-capacity electrical connections for your industrial applications. Designed with durable materials and rated for 216A at 300V AC, this terminal offers excellent insulation, resistance to temperature variations, and secure wire attachment through a simple screw mechanism. Its compact size and compatibility with wire ranges from 12AWG to 26AWG make it perfect for automation, control panels, and manufacturing setups. Buy now to enhance your projects with quality and dependability.
Buy Acme 8141015 now and experience unmatched reliability, high current capacity, and secure connections for industrial and automation projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000033?
You can click on the BUY or RFQ button to purchase MC000033 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000033?
You can download the MC000033 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000033?
MULTICOMP PRO
