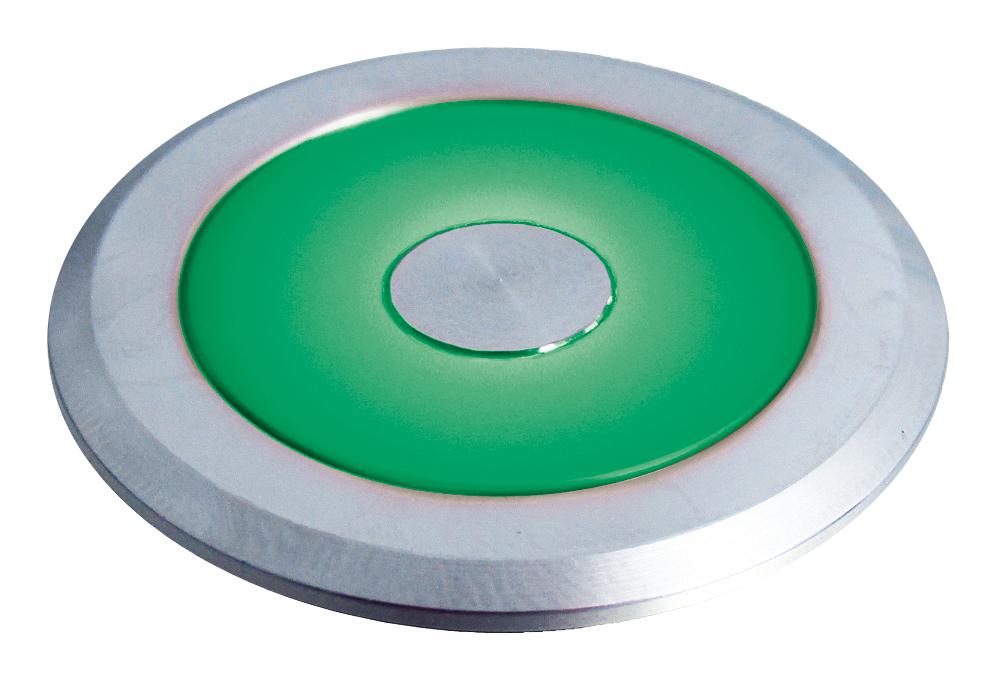

MULTICOMP PRO MC010993 Vandal Resistant Switch
The Flush Illuminated Vandal Resistant Switch features a robust metal bezel and silhouette design, suitable for demanding industrial environments. It has a rated voltage of 600V and a current capacity of 210A, with green, red, or blue LED indicators operating at 12V AC/DC. The switch is highly durable, with a mechanical life of 1,000,000 cycles and an electrical life of 100,000 cycles. Its IP65 rating ensures resistance to dust and water, making it ideal for vandal-prone locations and outdoor applications. Constructed from aluminum, it provides reliable performance across various temperature and humidity conditions, with dielectric strength up to 2,000V AC between live parts and ground.
MULTICOMP PRO MC010993 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminum
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: 1°C to 55°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1,000 m/s² (damage limits); 100 m/s² (operating limits)
- Mechanical Life: Momentary 1,000,000 cycles; Maintained 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Multicomp Pro Series Vandal Resistant Switch: MC010993
Order the multicomp pro vandal resistant switch MC010993 online today. This high-performance switch features robust metal construction, IP65 waterproof protection, and bright LED indicators available in green, red, or blue. Ideal for industrial, outdoor, and vandal-prone areas, it offers a long mechanical life of 1,000,000 cycles and electrical durability of 100,000 cycles. Its compact size and durable build make it perfect for demanding applications requiring rugged reliability and quick installation. Enhance your operational efficiency now.
Buy multicomp pro series vandal resistant switch MC010993 now and experience unmatched reliability and performance with rugged IP65 protection.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010993?
You can click on the BUY or RFQ button to purchase MC010993 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010993?
You can download the MC010993 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010993?
MULTICOMP PRO
