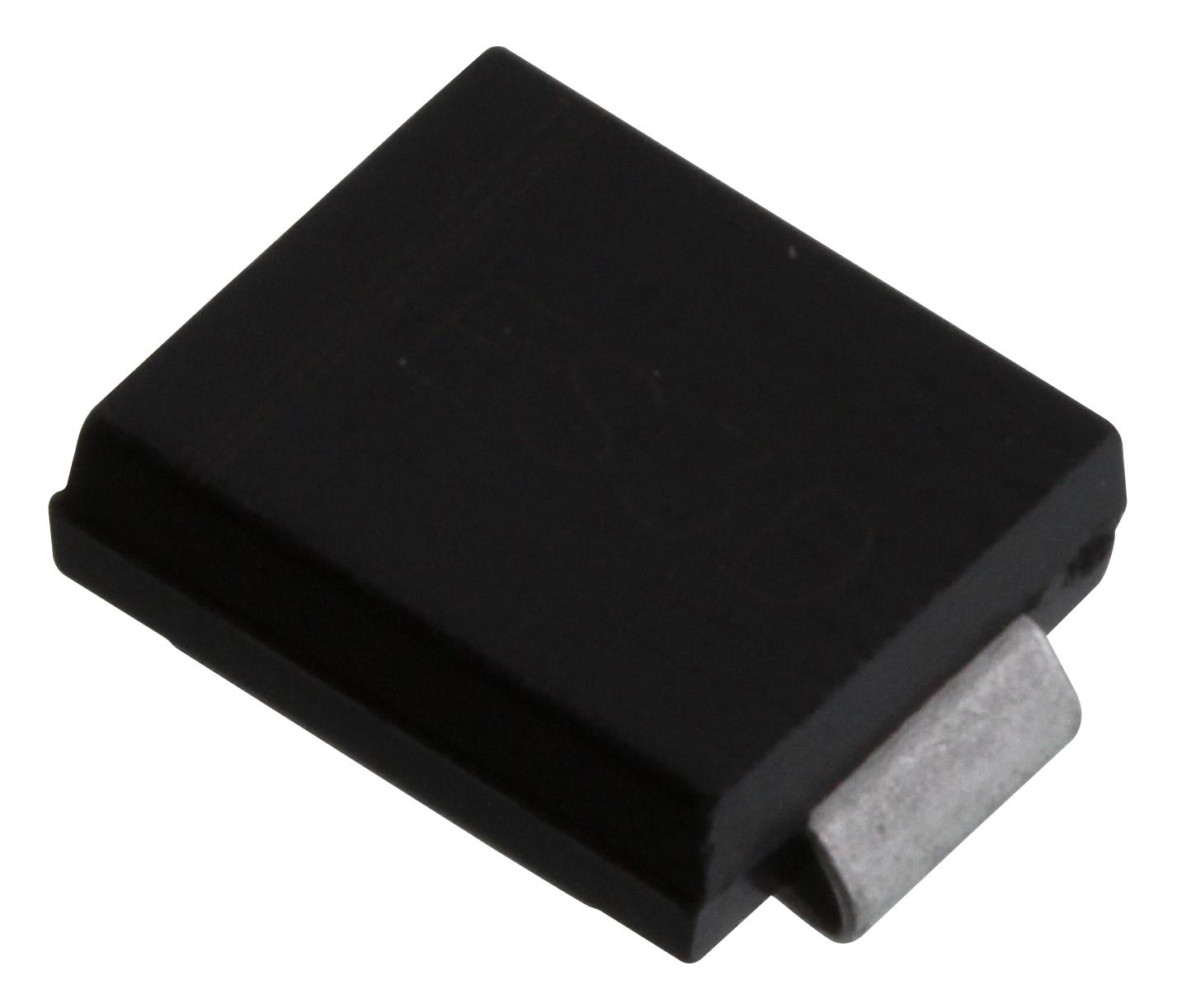

MULTICOMP PRO ES3D Surface Mount Rectifier
The multicomp Super Fast Glass Passivated Rectifier is a high-efficiency surface-mount diode designed for fast switching applications. It features low forward voltage drop, high current capacity of 3A, and low reverse leakage current, making it ideal for various electronic circuits. The plastic case is UL 94V-0 rated for flammability, ensuring safety and durability. With a reverse voltage range from 50 to 600V and a maximum junction temperature of 150°C, this rectifier offers reliable performance in demanding environments, suitable for power supply and rectification tasks.
MULTICOMP PRO ES3D Surface Mount Rectifier Specifications:
- Case: Molded Plastic
- Polarity: Colour band denotes cathode
- Weight: 0.007 ounces, 0.21 grams
- Mounting Position: Any
- Reverse Voltage Range: 50 to 600 Volts
- Forward Current: 3 Amperes
- Max. Recurrent Peak Reverse Voltage: 50, 200, 400 V
- Max. RMS Voltage: 35, 140, 280 V
- Max. DC Blocking Voltage: 50, 200, 400 V
- Peak Forward Surge Current: 100 A
- Peak Forward Voltage at 3A DC: 0.95, 1.3 V
- Maximum DC Reverse Current @ 25°C: 5 μA
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Dimensions: Inches (Millimetres): 0.128(3.25) x 0.245(6.22), 0.103(2.62) x 0.079(2.00), 0.060(1.52) x 0.008(0.203)
Buy the Buy Multicomp Glass Passivated Rectifier Part Number ES3D Online
Purchase the multicomp surface mount rectifier online today to ensure high efficiency and reliable power conversion in your electronic projects. This fast-switching diode offers low forward voltage, excellent surge current handling, and wide temperature range, making it suitable for power supplies, rectification, and industrial applications. Avail its UL 94V-0 rated plastic case for safety and durability, with convenient mounting options for any orientation. Order now for quick delivery and keep your systems running smoothly with trusted semiconductor components.
Buy Multicomp ES3D now and experience unmatched reliability, high current capacity, and fast switching for power applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ES3D?
You can click on the BUY or RFQ button to purchase ES3D from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ES3D?
You can download the ES3D datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ES3D?
MULTICOMP PRO
