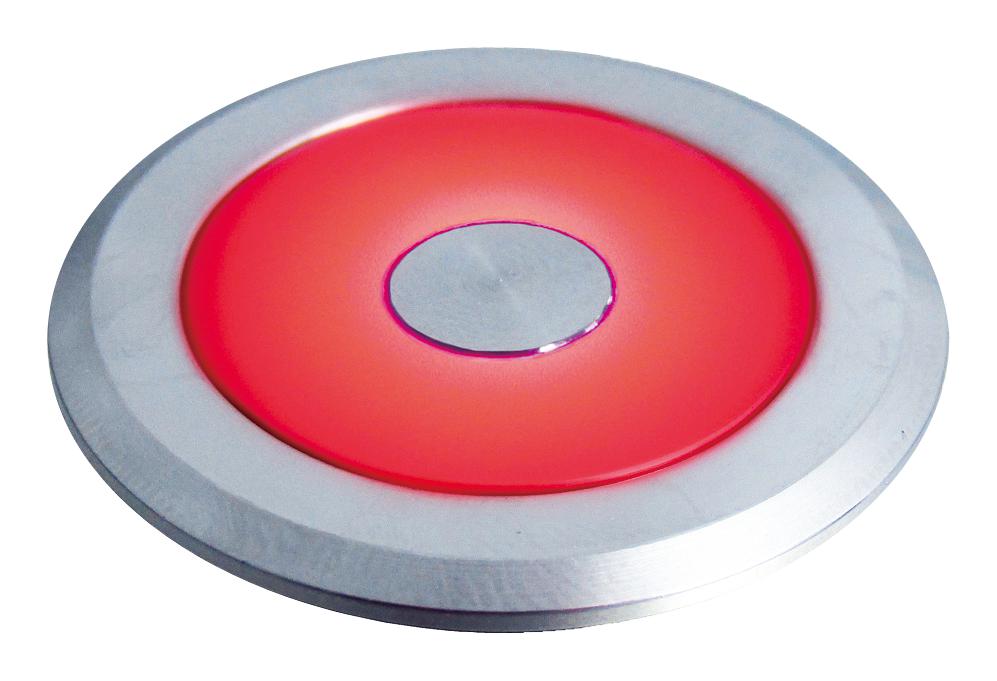

MULTICOMP PRO MC010994 Vandal-Resistant Switch
The flush illuminated vandal-resistant switch features a robust metal bezel-ring design suitable for demanding environments. It supports mounting hole diameters of 22mm or 30mm and is equipped with silver contact blocks for reliable operation. With LED indicators available in green, red, or blue, it provides clear visual status signals. Rated at 600V and 210A, this switch offers IP65 protection, dielectric strength of 2,000V AC between live parts and ground, and insulation resistance of 100MQ. Its durable aluminium finish withstands temperature variations from -30°C to +80°C, making it ideal for industrial and outdoor applications requiring vandal resistance and high durability.
MULTICOMP PRO MC010994 Vandal-Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: 1-25°C to +55°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Damage limits: 1,000 m/S²; Operating limits: 100 m/S²
- Mechanical Life: Momentary: 1,000,000; Maintained: 100,000
- Electrical Life: 100,000
- Degree of Protection: IP65
- Terminal Style: Contact Block
- Dimensions: Suitable for mounting hole diameters of 22mm or 30mm
Buy the Multicomp Series Vandal-Resistant Illuminated Switch: MC010994
Order the vandal-resistant illuminated switch online today and enjoy reliable performance with bright LED indicators in three colors. Constructed with durable aluminium and IP65 protection, this switch withstands harsh environmental conditions while providing high electrical ratings of 600V and 210A. Its robust design and easy installation make it suitable for industrial, outdoor, and vandal-prone areas. Experience quick and secure online purchasing for this reliable, long-lasting switch, ensuring your control systems remain operational and vandal-proof in demanding applications.
Get Multicomp MC010994 today—built for vandal resistance, high current capacity, and durable outdoor use.
