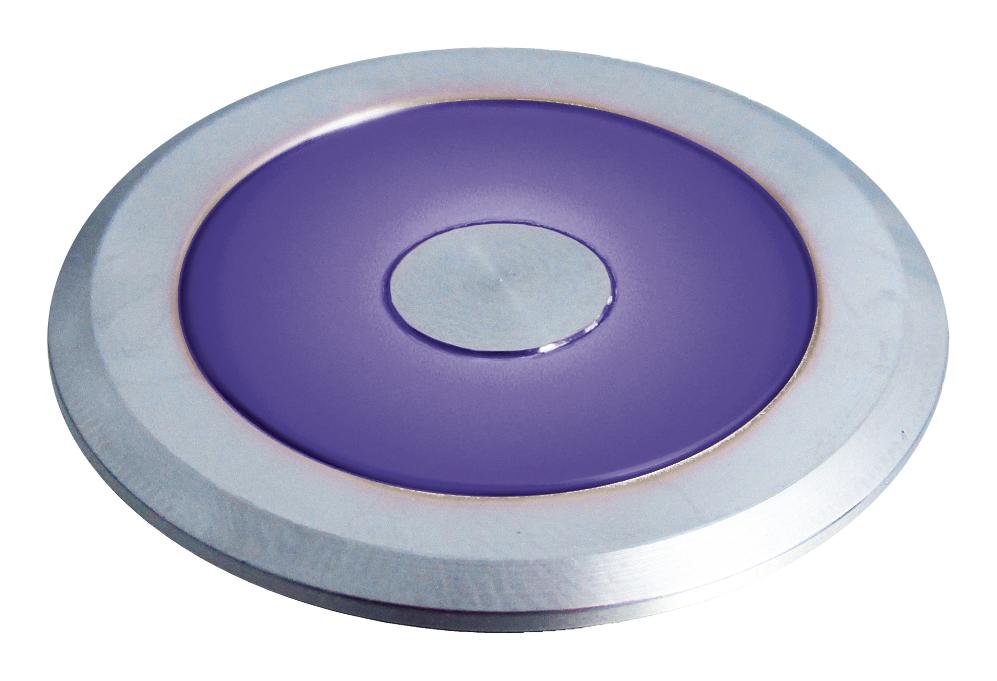

MULTICOMP PRO MC010998 Illuminated Vandal Switch
This illuminated vandal-resistant switch features a metal bezel-ring design suitable for industrial environments. It is available in different configurations including momentary and maintained contact types with various pole arrangements—1NO, 1NC, 2NO, 2NC, and combinations like 1NO + 1NC. The switch offers LED indication with green, red, or blue colors, rated for voltage up to 600V and current of 210A. It can be flush-mounted with a hole diameter of 22mm or 30mm, and exhibits IP65 protection, vibration and shock resistance, making it ideal for industrial control applications requiring durability and reliable operation.
MULTICOMP PRO MC010998 Illuminated Vandal Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: 1°C to +55°C
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1,000 m/s² damage limit, 100 m/s² operational limit
- Mechanical Life: Momentary: 1,000,000; Maintained: 100,000
- Electrical Life: 100,000
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Farnell MC010998 – Reliable Industrial Illuminated Vandal Switch for Industrial Applications
Explore the robust and reliable illuminated vandal switch available online, designed for harsh industrial environments. With multiple contact configurations and LED indicators in green, red, or blue, this switch ensures visibility and durability. Rated for 600V and 210A, it features IP65 protection, making it suitable for demanding applications. Easy to mount and capable of withstanding vibrations and shocks, it delivers consistent performance for control panels, machinery, and automation systems. Purchase now for quick delivery and trusted quality.
Buy Farnell MC010998 now and experience unmatched durability and performance in industrial control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010998?
You can click on the BUY or RFQ button to purchase MC010998 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010998?
You can download the MC010998 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010998?
MULTICOMP PRO
