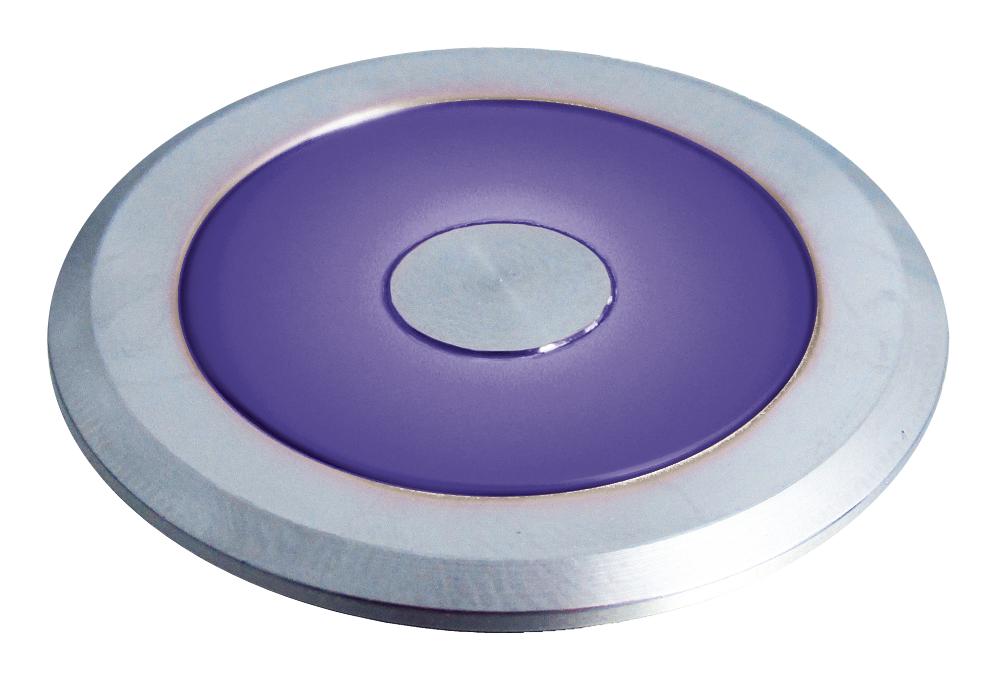

MULTICOMP PRO MC011001 Vandal Resistant Switch
The Flush Illuminated Vandal Resistant Switch offers robust and reliable operation with a metal bezel and silhouette ring design. It features LED indicators in green, red, or blue, rated at 12V AC/DC. The switch is rated for 600V and 210A, with a dielectric strength of 2,000V AC between live parts and ground. It has a mechanical life of 1,000,000 cycles and electrical life of 100,000 cycles, designed for harsh environments with an IP65 degree of protection. Suitable for industrial control applications, it ensures durability and visibility with flush-mounted LED illumination. Built with high-quality aluminum, it withstands vibration and shock, making it perfect for vandal-proof installations. The switch supports various contact configurations (1NO, 1NC, 2NO, 2NC, etc.) with additional models featuring maintained or momentary contact modes, ensuring flexibility for diverse control needs.
MULTICOMP PRO MC011001 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green, Red, Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: 1-25°C to +55°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1,000 m/s² damage limit; 100 m/s² operating limit
- Mechanical Life: 1,000,000 cycles (Momentary), 100,000 cycles (Maintained)
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Buy Brand Switch Part Number MC011001 Online
Purchase the durable vandal resistant switch online today to ensure reliable operation in harsh environments. With LED indicators, high IP65 protection, and various contact options, this switch is ideal for industrial control applications. Its robust aluminum construction withstands vibration, shock, and extreme temperatures. Easy to install with flush-mounted LED illumination, it provides clear visibility and long-lasting performance. Upgrade your control systems now and enjoy fast shipping, competitive prices, and high-quality products for all your industrial needs.
Order your Brand SeriesMC011001 vandal resistant switch today and experience reliable, high-durability control for demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC011001?
You can click on the BUY or RFQ button to purchase MC011001 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC011001?
You can download the MC011001 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC011001?
MULTICOMP PRO
