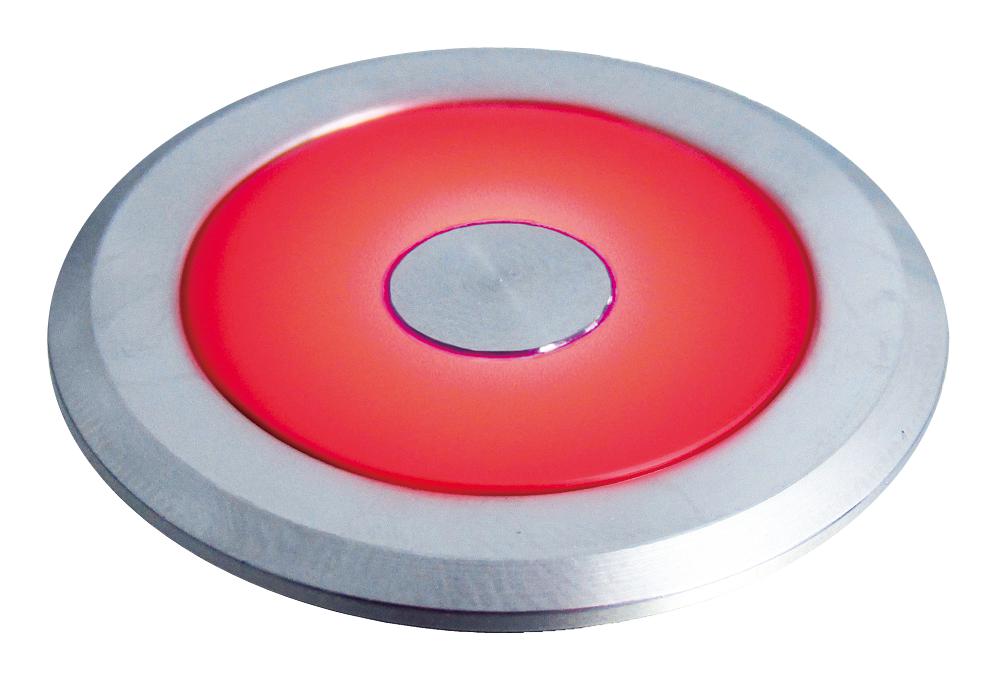

MULTICOMP PRO MC011003 Illuminated Industrial Switch
The Flush Illuminated Vandal Resistant Switch is designed for industrial applications requiring durability and high performance. It features a metal bezel or silhouette ring, LED illumination with green, red, or blue colors, and a rated voltage of 600V with a current capacity of 210A. Suitable for mounting holes of 22mm or 30mm, the switch offers dielectric strength of up to 2,000V AC, a mechanical life of 1 million operations, and an IP65 degree of protection. Made from durable aluminum, it withstands harsh environments with operating temperatures from -30°C to +55°C and humidity levels from 45% to 85% RH.
MULTICOMP PRO MC011003 Illuminated Industrial Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminum
- Dielectric Strength: 2,000V AC between live parts and ground
- Contact Resistance: 50mΩ max (initial)
- Insulation Resistance: 100MΩ min (500V DC)
- Operating Humidity: 45 to 85% RH (no condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: 1°C to 55°C
- Vibration Resistance: 5 to 55Hz, amplitude 0.5mm
- Shock Resistance: 1,000m/s² damage limit, 100m/s² operating limit
- Mechanical Life: 1,000,000 momentary, 100,000 maintained
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Multicomp Pro MC011003 – Reliable Industrial Illuminated Vandal Switch for Industrial Applications
Order the high-performance illuminated vandal-resistant switch online today. Crafted for industrial environments, it offers IP65 protection, LED indicator options, and a robust aluminum body. Perfect for automation systems, control panels, and harsh settings, this switch ensures reliable operation with a mechanical life of over a million cycles. Its rated voltage of 600V and current capacity of 210A make it suitable for demanding applications. Simplify your procurement process and enhance safety by purchasing this durable switch through our secure online store.
Get Multicomp Pro MC011003 today—built for precision, durability, and harsh industrial environments.
