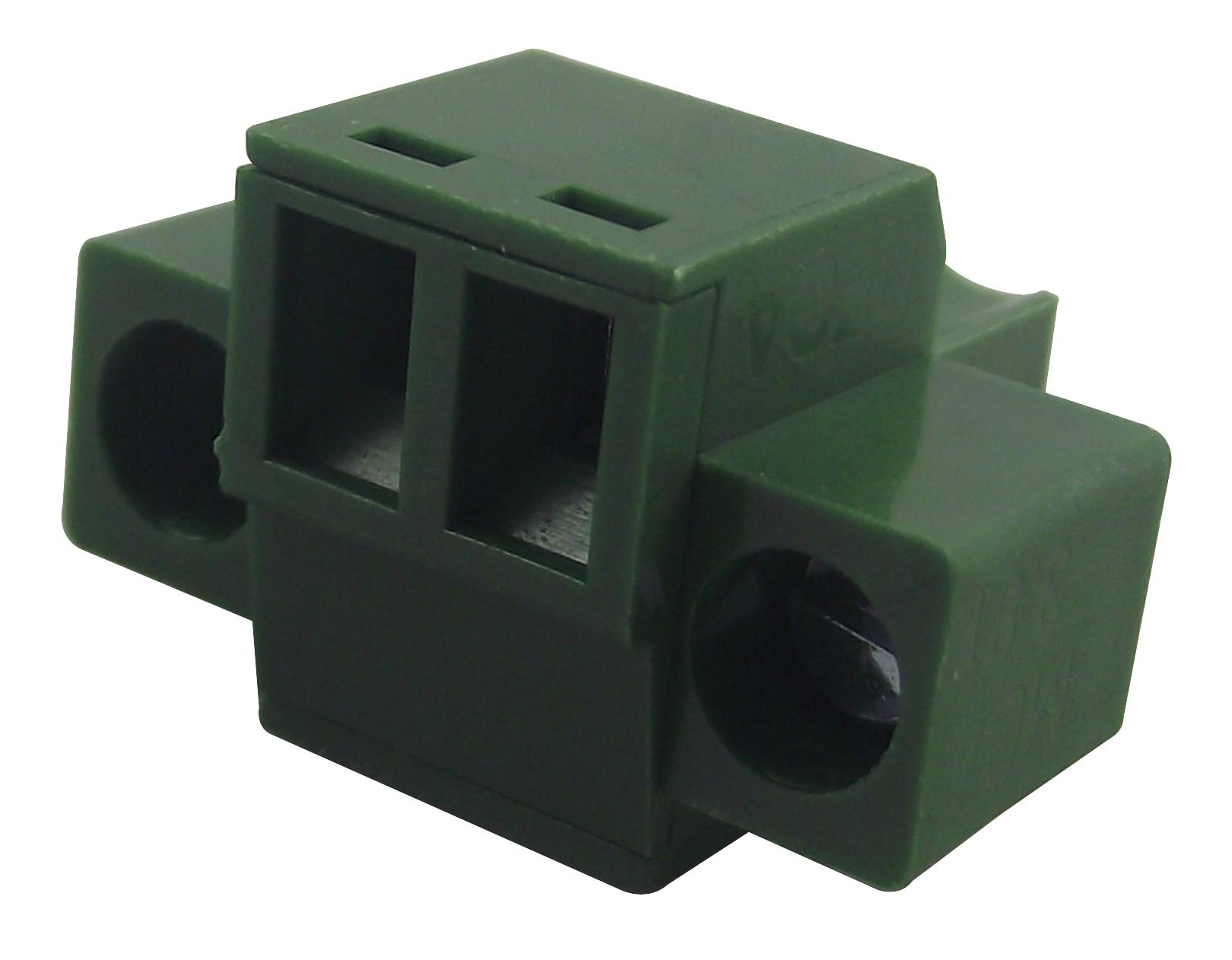

MULTICOMP PRO MC421381002 Pluggable Terminal Block
This pluggable terminal block with flanges features a 3.81mm pitch, rated for 300 VAC and 10A current. Crafted from polyamide 66 with brass cage clamps, tin-plated phosphor bronze contacts, and steel, nickel-plated screws, it supports wire sizes from 26 AWG to 16 AWG. Operating efficiently between -40°C and +105°C, it offers secure and reliable connections for electronic assemblies. Suitable for diverse industrial and automation applications, these locking plugs ensure safe, stable, and vibration-resistant connections in various electrical systems.
MULTICOMP PRO MC421381002 Pluggable Terminal Block Specifications:
- Rated Voltage: 300 VAC
- Rated Current: 10A
- Wire Size: 26 AWG to 16 AWG
- Housing Material: Polyamide 66
- Cage Clamp: Brass, Ni Plated
- Contact Material: Phosphor Bronze, Tin Plated
- Screw Size: M2, Steel, Ni Plated
- Operating Temperature: -40°C to +105°C
- Torque: 3 Ib-Inch
- Pitch: 3.81mm (0.15 Inches)
Buy the Buy multicomp RC Part Number MC421381002 Online
Discover the high-quality pluggable terminal block with flanges, designed for secure electrical connections in industrial and automation settings. Featuring a 3.81mm pitch, rated for 300VAC and 10A, it supports wire sizes from 26 to 16 AWG. Made from durable polyamide 66 with brass cages, tin-plated contacts, and steel screws, it operates efficiently from -40°C to +105°C. Perfect for engineers seeking safe, vibration-resistant, and stable electrical connections, it can be easily integrated into diverse control panels and automation systems. Order now for quick delivery.
Get multicomp RC Part Number MC421381002 today—built for reliable electrical connections and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC421381002?
You can click on the BUY or RFQ button to purchase MC421381002 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC421381002?
You can download the MC421381002 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC421381002?
MULTICOMP PRO
