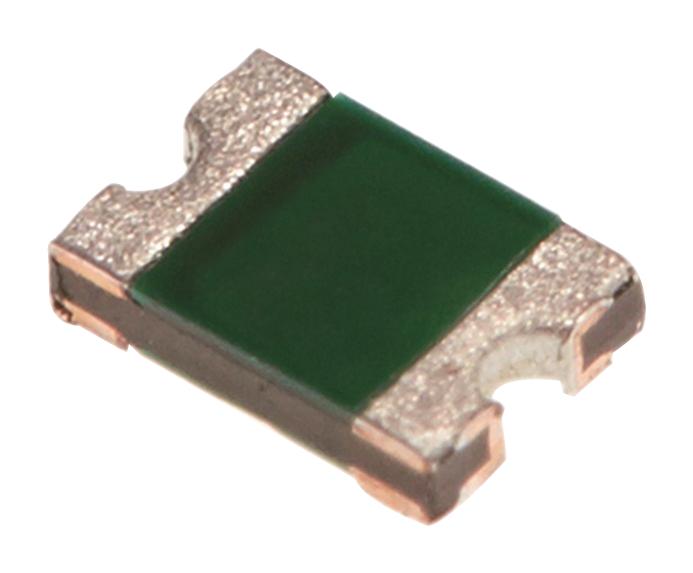

MULTICOMP PRO MC011009 Surface Mount PTC Fuse
This surface mountable PTC resettable fuse is designed for high-density electronic boards, offering solid-state protection with faster trip times and lower resistance. With RoHS compliance, it operates in temperatures ranging from -40°C to 85°C, ensuring safety and reliability. The fuse features pure tin termination pads, meets strict soldering standards, and comes in the 0805 package size, ideal for compact applications. It provides overcurrent protection by trip and hold characteristics, with specifications supporting optimal circuit safeguarding in electronic assemblies.
MULTICOMP PRO MC011009 Surface Mount PTC Fuse Specifications:
- Package Size: 0805
- Operating Temperature Range: -40°C to 85°C
- Hold Current Max: 0.1A (MC011009), 0.2A (MC011038), 0.35A (MC011039)
- Trip Current Min: 0.3A (MC011009), 0.5A (MC011038), 0.75A (MC011039)
- Maximum Voltage: 15V (MC011009), 9V (MC011038), 6V (MC011039)
- Maximum Power Dissipation: 0.5W (MC011009), 0.5W (MC011038), 0.5W (MC011039)
- Resistance at 23°C: R_in min, measured before trip
- Resistance after trip: R1max measured 1 hour post-trip or soldering
- Material: Termination pad material is pure tin, meeting EIA and ANSI standards
- Soldering Characteristics: Meets industry specifications for reflow soldering
- Dimensions: Length approximately 1.2mm, width 0.6mm, height 0.45mm, with specific pad layout and profile for reliable assembly
Buy the Buy Multicomp PTC Resettable Fuse Part Number MC011009 Online
Secure your electronic projects with Multicomp's reliable 0805 surface mountable PTC resettable fuse. Designed for high-density boards, it features quick trip times, low resistance, and RoHS compliance, ensuring safety and durability across temperatures from -40°C to 85°C. The fuse’s pure tin terminations meet industry soldering standards, offering maximum circuit protection. Easy to install and reflow-solder compatible, this compact component is ideal for modern electronic devices requiring overcurrent safeguarding, providing long-lasting performance.
Order your Multicomp SeriesMC011009 0.1A Surface Mountable PTC Fuse today and ensure your electronic circuits are protected with reliable, quick-trip circuit protection components.
