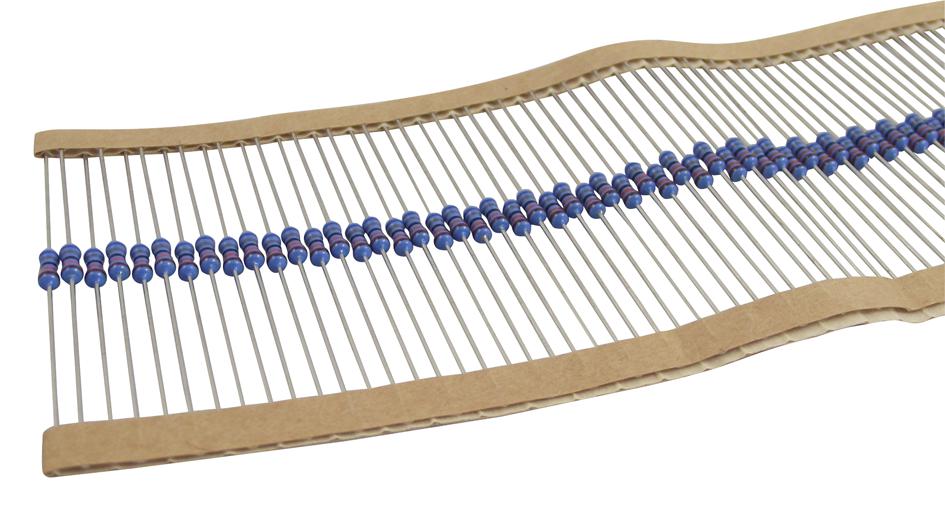

MULTICOMP PRO MF0W4FFE006KIT Metal Film Resistor Kit
The resistor kit includes 100 pieces of each of 31 different resistor values ranging from 10Ω to 1MΩ. It is suitable for test and measurement applications, providing a comprehensive selection for various electronic projects. The kit is from the Multicomp Pro brand, which is rated 4.6 out of 5 stars, and comes with a 12-month limited warranty.
MULTICOMP PRO MF0W4FFE006KIT Metal Film Resistor Kit Specifications:
- Rated Power: 0.25W at 70°C
- Maximum Working Voltage: 250V
- Maximum Overload Voltage: 500V
- Dielectric Withstanding Voltage: 500V
- Resistance Tolerance: ±1%
- Resistance Range: 10Ω to 1MΩ
- Temperature Coefficient: ±50 PPM/°C
- Operating Temp. Range: -55°C to +155°C
- Insulation Resistance: 10,000MΩ Min.
- Construction: Ceramic body, metal film resistance, steel (tin-plated iron) end caps, annealed copper leads coated with tin, epoxy resin coating
- Dimensions: D=2.5mm, L=6.8mm, H=28mm
- Testing: Solderability at 245°C for 2-3 seconds, resistance to soldering heat at 350°C for 3 seconds, temperature cycling between -55°C and +155°C, vibration resistance, load life at 70°C
- Marking: Color-coded according to JIS C 0802
- Quantity: 100 pcs per value, total 3,100 pcs
- Series: E-6, Power rating: 1/4W, Tolerance: ±1%, PPM: +50PPM
Buy the Multicomp Series E-6 Metal Film Resistor: MF0W4FFE006KIT
Enhance your electronic components collection with the Multicomp Series E-6 Metal Film Resistor Kit. This comprehensive set includes 31 resistor values from 10Ω to 1MΩ, with 100 pieces per value, ideal for testing, measurement, and prototyping tasks. Crafted with ceramic bodies and precision metal film resistors, it ensures high accuracy, stability, and durability under various operating conditions. Perfect for engineers, technicians, and hobbyists, this resistor kit offers excellent performance, easy solderability, and reliable quality for all your electronic projects.
Buy Multicomp Series E-6 Metal Film Resistor kit now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MF0W4FFE006KIT?
You can click on the BUY or RFQ button to purchase MF0W4FFE006KIT from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MF0W4FFE006KIT?
You can download the MF0W4FFE006KIT datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MF0W4FFE006KIT?
MULTICOMP PRO
