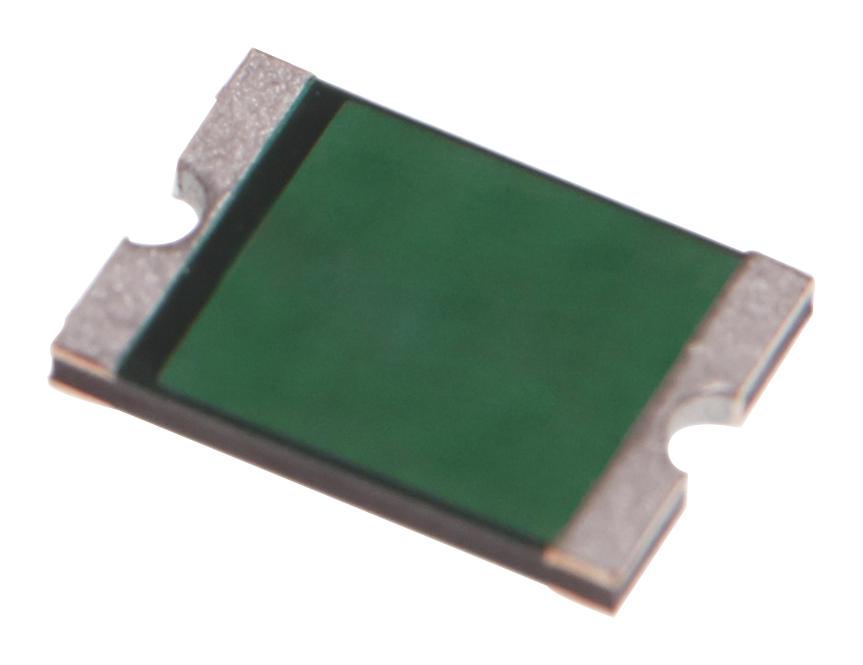

MULTICOMP PRO MC011016 Surface Mountable PTC Fuse
The surface mountable PTC resettable fuse is designed for all high-density boards, offering fast trip times, solid-state reliability, and a wide temperature range of -40°C to 85°C. RoHS compliant, it features halogen-free materials, pure tin termination pads, and reliable electrical characteristics with rated currents from 0.5A to 2.5A at voltages up to 60V. Its compact size and reflow-suitable pad layout make it suitable for modern electronic circuit protection, ensuring safety and durability in various applications.
MULTICOMP PRO MC011016 Surface Mountable PTC Fuse Specifications:
- Hold Current: 0.5A to 2.5A
- Voltage Rating: up to 60V
- Trip Current: 1A to 5A
- Resistance: maximum 0.3Ω
- Temperature Range: -40°C to 85°C
- Termination Material: Pure Tin
- Soldering Characteristics: Meets EIA RS 186-9E
- Dimensions: Approximate length 6.73mm to 7.98mm, width 4.8mm to 5.4mm
- Power Dissipation: up to 25W
- Time to Trip: 8 to 150 seconds depending on current
- Halogen-Free: Yes
- RoHS Compliant: Yes
- Material: Solid-state polymer fuse
Buy the Buy Multicomp Surface Mountable PTC Resettable Fuse Part Number MC011016 Online
Purchase the high-quality Multicomp surface mountable PTC resettable fuse online to guarantee dependable circuit protection. This compact, RoHS compliant fuse features rapid trip times, a broad temperature range from -40°C to 85°C, halogen-free materials, and pure tin termination pads suitable for reflow soldering. Designed for high-density boards, it provides durable protection with rated currents from 0.5A to 2.5A and voltages up to 60V. Enhance your electronic builds with reliable, quick-response fuses for safety and peace of mind.
Order your Multicomp SeriesMC011016 1.5A 33V surface mount PTC fuse today and ensure reliable, fast-acting circuit protection for your high-density electronics.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC011016?
You can click on the BUY or RFQ button to purchase MC011016 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC011016?
You can download the MC011016 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC011016?
MULTICOMP PRO
