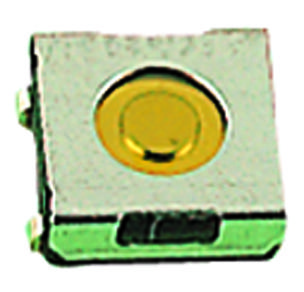

MULTICOMP PRO MCDTSJW68S Tactile Switch
The MCDTSJW6 series washable tactile switch features a single pole single throw (SPST) contact configuration, stainless steel cover, and brass terminals with silver plating, ensuring reliable connectivity for industrial control panels and equipment. Its operating temperature ranges from -25°C to 70°C, making it suitable for diverse environments. The switch requires a force of 160±50gf and has a stroke of 0.25+0.20/-0.1mm. It supports electrical life of at least 100,000 cycles, with a rated voltage of 12VDC and current of 50mA. Designed for durability and precision, it can be hand soldered or reflow soldered, providing versatile installation options with a high-quality thermoplastic base and PTFE stem.
MULTICOMP PRO MCDTSJW68S Tactile Switch Specifications:
- Operation Force: 160±50gf
- Stroke: 0.25+0.20/-0.1mm
- Operating Temperature: -25°C to 70°C
- Storage Temperature: -30°C to 80°C
- Electrical Life: 100,000 cycles min.
- Rating: 50mA, 12VDC
- Contact Resistance: 100mΩ max.
- Insulation Resistance: 100MΩ min. at 500VDC
- Dielectric Strength: 250V AC/minute
- Contact Arrangement: 1 pole 1 throw
- Materials: Cover stainless steel, Terminal brass with silver plating, Base nylon high-temp thermoplastic
- Soldering: Hand soldering (max 350°C for 5 sec), Vapour reflow soldering (max 260°C)
Buy the Multicomp Pro MCDTSJW68S – Reliable Tactile Switch for Industrial Applications
Purchase the durable Multicomp Pro tactile switch online today. Designed for industrial control panels, it features SPST contact, silver-plated terminals, and a thermoplastic base. Easy to install via hand or reflow soldering, it withstands -25°C to 70°C temperatures, supporting over 100,000 cycles for long-lasting performance. Perfect for automation, machinery, and control applications, this switch offers reliability, precision, and wide compatibility, making it a dependable choice for professional engineers and technicians seeking high-quality industrial electronic components.
Order your Multicomp Pro MCDTSJW68S tactile switch today and ensure reliable performance in automation and control projects.
