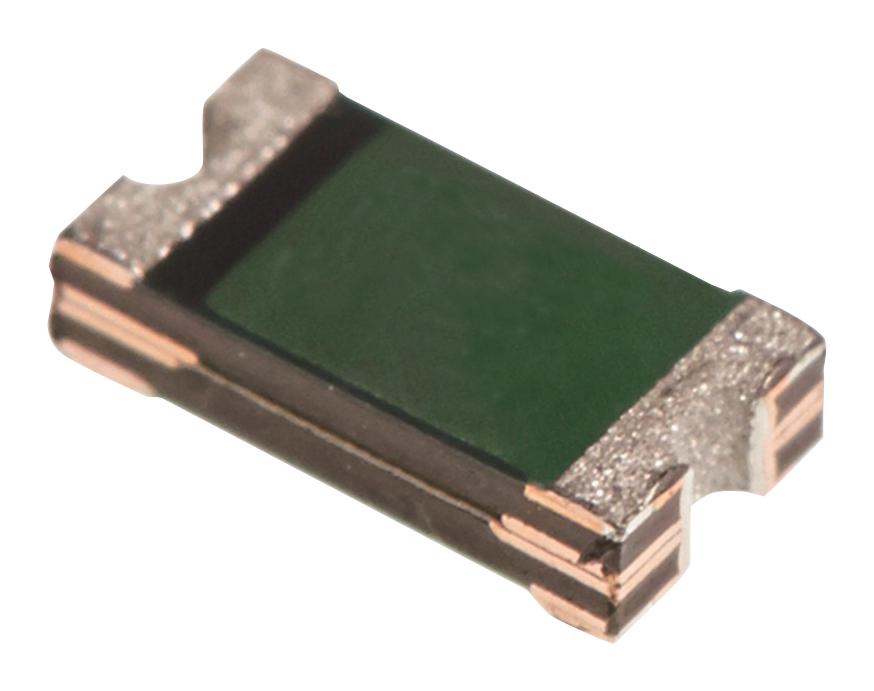

MULTICOMP PRO MC011036 PTC Resettable Fuse
This surface mountable PTC resettable fuse offers a compact 1206 size, ideal for high-density PCB applications. Made with solid-state technology, it provides faster trip times, lower resistance, and a temperature range from -40°C to 85°C. RoHS compliant, it features pure tin termination pads for reliable soldering and reflow compatibility. Suitable for protecting sensitive electronic circuits from overcurrent faults, it withstands up to 100V and 0.4A trip current, with a typical resistance of 0.6 ohms. Its halogen-free construction ensures environmentally safe operation, making it an essential component in modern electronic devices.
MULTICOMP PRO MC011036 PTC Resettable Fuse Specifications:
- Package Size: 1206 surface mount
- Hold Current: 0.2A
- Trip Current: 0.4A
- Voltage Rating: 30V
- Maximum Voltage: 100V
- Maximum Power Dissipation: 0.6W
- Resistance: 0.6 ohms typical at 23°C
- Operating Temperature: -40°C to 85°C
- Material: Pure Tin termination pads
- Soldering Characteristics: Meets EIA RS 186-9E, ANSI/J-std-002 Category 3
- Dimensions: Length approx. 3 mm, width 1.5 mm, height 0.75 mm
- RoHS Compliant, Halogen Free
- Application: High density circuit protection in electronic devices
Buy the Multicomp MC011036 – Reliable PTC Fuse for Industrial Applications
Purchase the Multicomp PTC Resettable Fuse MC011036 online today. Designed for high-density electronic circuits, it features a compact 1206 size, fast trip response, and low resistance. Suitable for protecting sensitive components from overcurrent, it operates within a temperature range of -40°C to 85°C and complies with RoHS standards. Its pure tin termination pads ensure reliable soldering and reflow performance. Ideal for modern electronic assemblies, this fuse guarantees safety, durability, and environmentally friendly operation—perfect for engineers seeking dependable circuit protection solutions.
Get Multicomp MC011036 today—built for precise circuit protection in demanding electronics.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC011036?
You can click on the BUY or RFQ button to purchase MC011036 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC011036?
You can download the MC011036 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC011036?
MULTICOMP PRO
