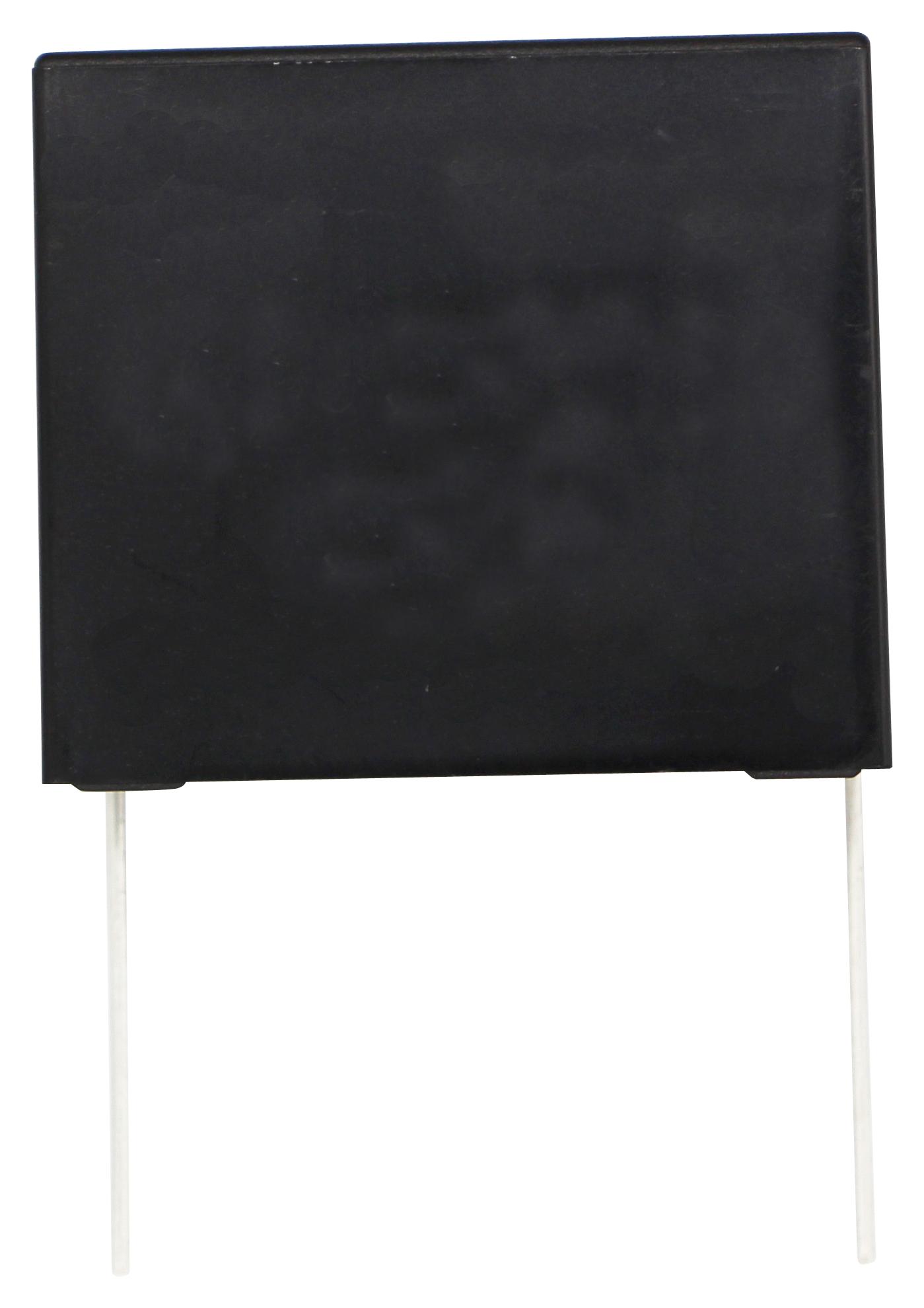

MULTICOMP PRO MPAPK3A5W47K0Q200 AC Filter Film Capacitor
The AC Output Filter Film Capacitors from the MPAPK Series multicomp PRO are radial leaded components designed for small power AC output filtering applications such as UPS and Solar Photovoltaic inverters with LCL filters. Featuring self-healing metallized polypropylene film construction, these capacitors operate within a temperature range of -40°C to +105°C and handle rated voltages up to 440V AC, with a maximum continuous DC voltage of 600V DC. Available in capacitance from 0.68 μF to 15 μF, they meet IEC 61071 standards and are suitable for filtering and noise suppression in various power electronics.</description>
MULTICOMP PRO MPAPK3A5W47K0Q200 AC Filter Film Capacitor Specifications:
- Climatic Category 1 40/85/21
- Operating Temperature Range (Case): -40°C to +105°C
- Rated RMS Voltage (Urms): 350V AC and 440V AC
- Rated AC Voltage (Un): 450V AC
- Max continuous DC Voltage: 600V DC
- Capacitance Range: 0.68 μF to 15 μF
- Capacitance Tolerance: ±10% (K)
- Voltage Proof: Between Terminals 1.5UN (10s), Case to Terminals 3000V AC (60s)
- Insulation Resistance: ≥3000s at 20°C, 100V DC, 1 min
- Dissipation Factor: ≤2 ×10^-4 at 1kHz, 20°C
- Dimensions (mm): Ww 42.5, H 40 mm, T 20 mm, Lead Dia. 1.2 mm
- Temperature Rating: -40°C to +105°C
- Standards: GB/T17702, IEC 61071
- Climatic Category: 40/85/21
Buy the Buy Multicomp PRO AC Output Filter Capacitors Part Number MPAPK3A5W47K0Q200 Online
Purchase the Multicomp PRO AC Filter Film Capacitor MPAPK3A5W47K0Q200 online today. Designed for small power filtering in UPS and inverter systems, it offers high stability, long service life, and excellent noise suppression capabilities. With a temperature range from -40°C to +105°C and rated voltages up to 440V AC, this capacitor ensures reliable operation in demanding environments. Its metallized polypropylene film construction provides self-healing properties, making it an ideal choice for your power electronic applications.
Buy Multicomp PRO MPAPK3A5W47K0Q200 now and experience unmatched reliability and filtering performance for your AC power applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPAPK3A5W47K0Q200?
You can click on the BUY or RFQ button to purchase MPAPK3A5W47K0Q200 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPAPK3A5W47K0Q200?
You can download the MPAPK3A5W47K0Q200 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPAPK3A5W47K0Q200?
MULTICOMP PRO
