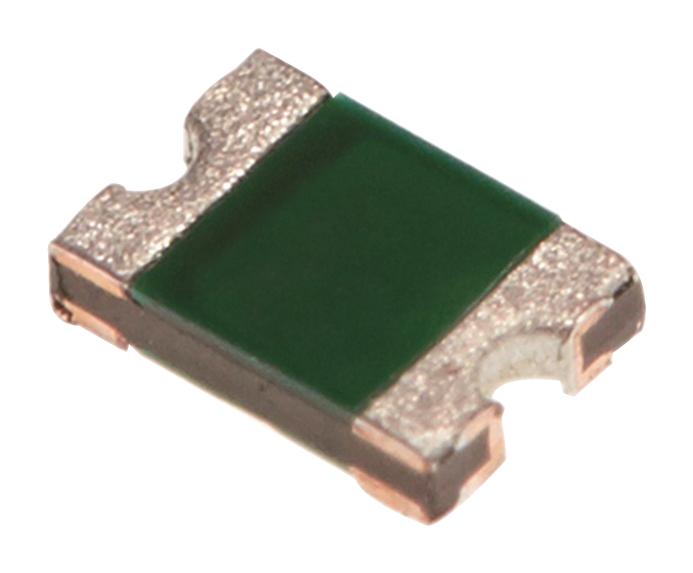

MULTICOMP PRO MC011038 PTC Resettable Fuse
The surface mountable PTC resettable fuse in the 0805 package by Multicomp provides reliable overcurrent protection for high-density electronic circuits. Featuring fast trip times, low resistance, and a temperature range from -40°C to 85°C, this solid-state fuse ensures safety and durability across various applications. It complies with RoHS standards and uses pure tin termination pads for reflow soldering, making it suitable for compact, surface-mount designs in electronics and industrial equipment. Its halogen-free construction enhances environmental safety and device lifespan.
MULTICOMP PRO MC011038 PTC Resettable Fuse Specifications:
- Package Size: 0805
- Hold Current: 0.2A
- Trip Current: 0.5A
- Maximum Voltage: 9V
- Maximum Power: 0.4W
- Resistance at 23°C: 0.02Ω
- Maximum Resistance: 0.4Ω measured after tripping or reflow
- Peak Time to Trip: 3.5 seconds
- Temperature Range: -40°C to 85°C
- Termination Pad Material: Pure Tin
- Soldering Characteristics: Meets EIA RS 186-9E, ANSI/J-std-002 Category 3
- Pad Dimensions: A=1.2mm, B=0.4mm, C=1.5mm
- Reflow Profile Peak Temperature: 260°C
- Reflow Time: 20-40 seconds within 5°C of peak
- Storage Conditions: <30°C / 60% RH
Buy the Buy Multicomp PTC Resettable Fuse Part Number MC011038 Online
Order the Multicomp PTC resettable fuse MC011038 online now for reliable overcurrent protection. With its compact 0805 size, low resistance, and fast trip response, it’s ideal for high-density boards and modern electronics. This RoHS-compliant fuse features halogen-free construction, pure tin terminals, and meets reflow soldering standards, ensuring easy assembly and durability. Perfect for industrial equipment, consumer electronics, and automation systems, it provides a robust, environmentally friendly safety solution for protecting your electronic designs.
Get Multicomp MC011038 today—compact, fast-trip surface-mount fuse designed for high-density electronic circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC011038?
You can click on the BUY or RFQ button to purchase MC011038 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC011038?
You can download the MC011038 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC011038?
MULTICOMP PRO
