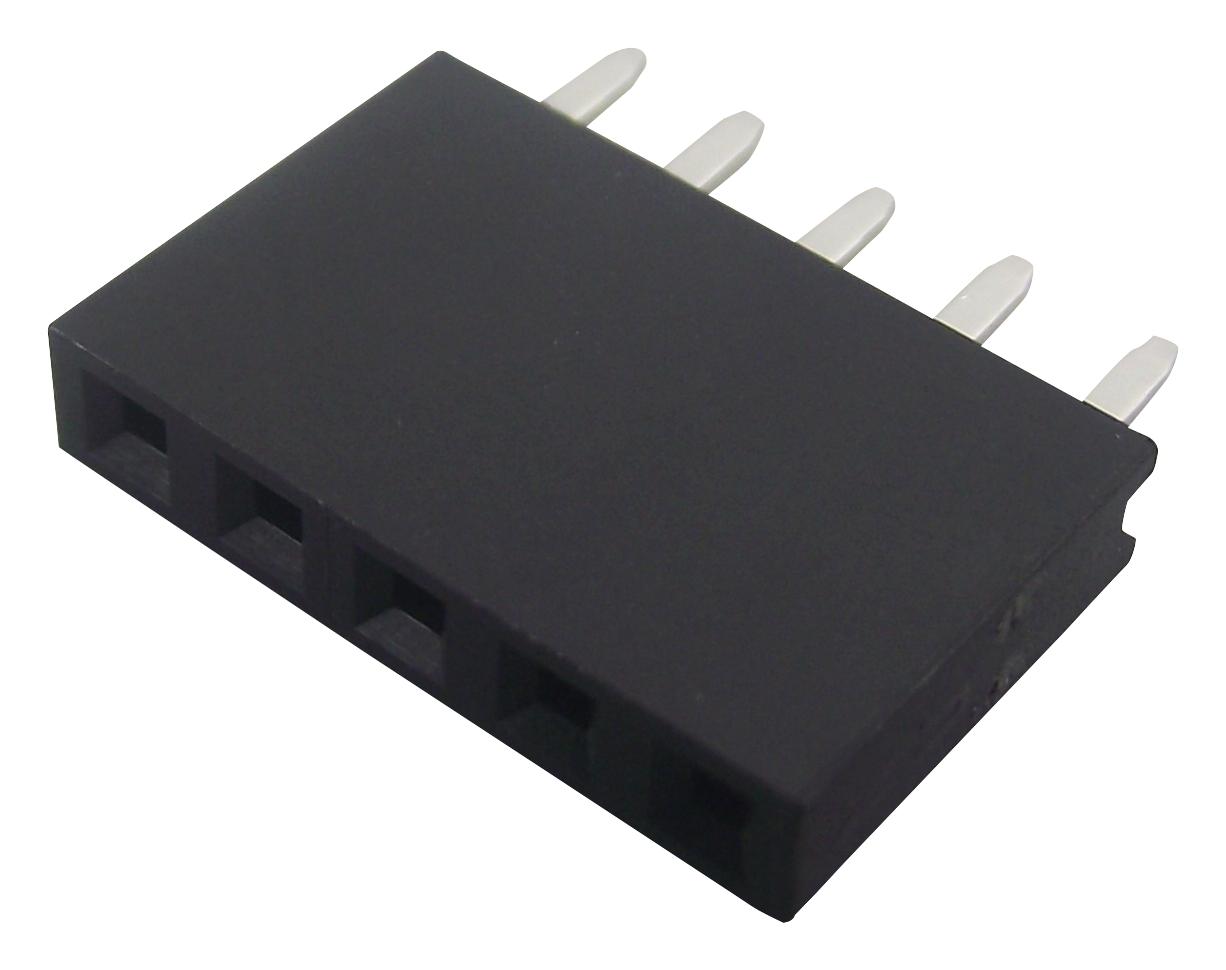

MULTICOMP PRO 2212S05SG85 PCB Socket
The 2212S-05SG-85 is a 5-way, single-row PCB socket designed for reliable electrical connections in industrial and electronic applications. Featuring a 2.54mm pitch, it includes selective gold-plated copper alloy contacts and a durable PBT insulator. It supports a 3A current rating and 250VAC/DC voltage rating, with low contact resistance of up to 20 milliohms and insulation resistance exceeding 1000 megaohms. This socket withstands voltages up to 600V AC for one minute and operates within -40°C to +105°C, ensuring durability and consistent performance in diverse environments.
MULTICOMP PRO 2212S05SG85 PCB Socket Specifications:
- Pitch: 2.54mm
- Number of contacts: 5
- Contact Material: Copper alloy, gold-plated
- Insulator Material: PBT
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: Up to 20mΩ
- Insulation Resistance: ≥ 1000MΩ
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Dimensions: Length varies based on number of contacts, typical pitch length approximately 13mm per contact
- Standard Color: Black
- RoHS Compliant: Yes
Buy the Buy multicomp PCB Socket Part Number 2212S-05SG-85 Online
Secure your electronic assembly with the 2212S-05SG-85 PCB socket, designed for durability and reliable connections. Its 2.54mm pitch, gold-plated contacts, and PBT insulator make it ideal for industrial and automation applications. Supporting 3A current and 250VAC/DC voltage, it withstands harsh environments with a temperature range of -40°C to +105°C. Easy to install with a compact design, it ensures optimal contact and electrical performance. Order now online to enhance your device reliability and operational efficiency.
Buy multicomp 2212S-05SG-85 PCB socket now and experience unmatched reliability and performance for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2212S05SG85?
You can click on the BUY or RFQ button to purchase 2212S05SG85 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2212S05SG85?
You can download the 2212S05SG85 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2212S05SG85?
MULTICOMP PRO
