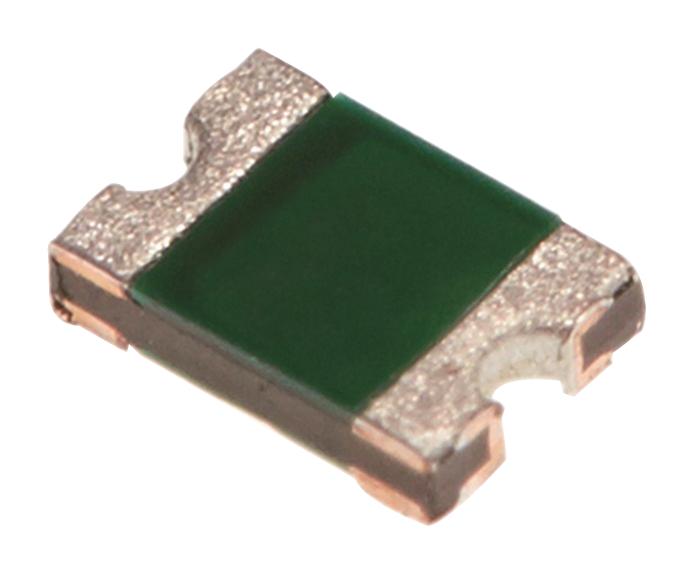

MULTICOMP PRO MC011039 Surface Mount PTC Fuse
This surface mountable PTC resettable fuse provides reliable overcurrent protection for high-density electronics. Designed with a small 0805 size, it features solid-state construction, fast trip times, and low resistance, making it suitable for compact circuit boards. The fuse operates within -40°C to 85°C, is halogen-free, and terminates with pure tin pads, ensuring easy reflow soldering and rework. Ideal for protecting electronic devices against overloads, it offers excellent thermal stability, minimum resistance prior to trip, and high fault current withstand capability, ensuring durable circuit protection.
MULTICOMP PRO MC011039 Surface Mount PTC Fuse Specifications:
- Size: 0805 surface-mount package
- Hold current (IH): 0.1A, 0.2A, 0.35A
- Trip current: 0.3A, 0.5A, 0.75A
- Voltage rating: 15V, 9V, 6V
- Maximum power: 0.5W, 0.8W, 0.25W
- Resistance prior to trip (Rin): 0.5 Ω, 0.02 Ω, 0.1 Ω
- Maximum resistance after trip (R1max): 1.5 Ω, 0.4 Ω, 1.2 Ω
- Trip time: 0.5 sec, 3 sec, 1.2 sec
- Temperature range: -40°C to 85°C
- Material: Pure tin termination pads
- Soldering: Meets EIA RS 186-9E and ANSI/J-std-002 Category 3
- Film thickness: >0.25mm, recommended reflow profile with peak at 260°C
- Solder reflow, rework, and cleaning compatible
- Mechanical mounting: Surface mount with recommended pad layout
Buy the Multicomp PRO MC011039 – Reliable Overcurrent Protection Fuse for Industrial Applications
Enhance your electronic circuit protection with this small, reliable surface mountable PTC resettable fuse. Featuring fast trip times, low resistance, and excellent thermal stability, it is ideal for high-density circuit boards. Designed for easy reflow soldering and rework, it operates across a wide temperature range of -40°C to 85°C. With pure tin termination pads and compliant with industry standards, this fuse offers excellent fault current withstand, ensuring your devices stay protected against overloads and short circuits.
Buy Multicomp PRO MC011039 now and experience unmatched reliability and performance with this compact high-density PTC resettable fuse.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC011039?
You can click on the BUY or RFQ button to purchase MC011039 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC011039?
You can download the MC011039 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC011039?
MULTICOMP PRO
