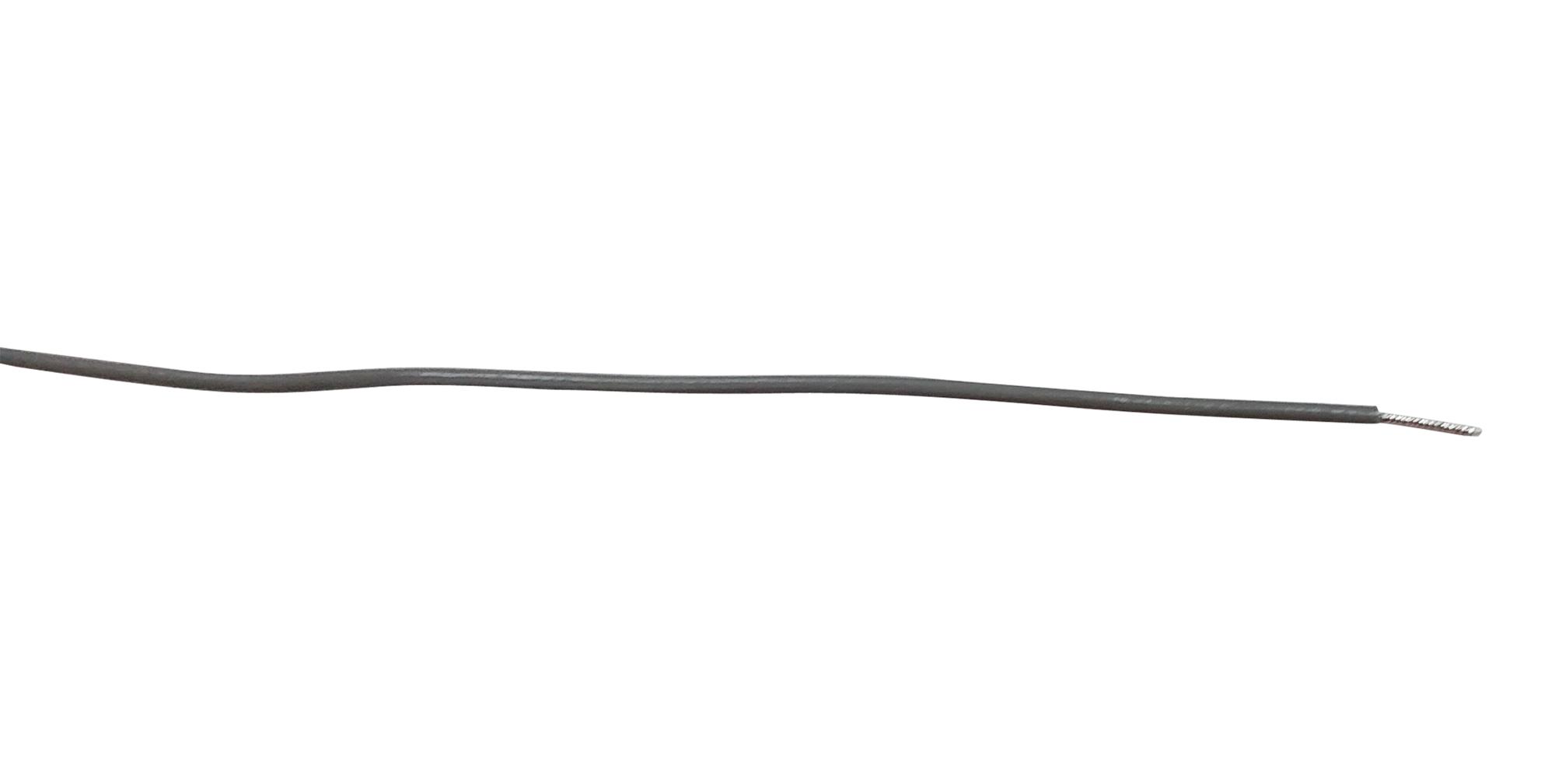

MULTICOMP-PRO PP002578 Hook-Up Wire
This UL1061 style stranded hook-up wire is constructed from stranded tinned copper conductors with SR PVC insulation, rated at 280°C and 300V. Designed for high-performance electrical applications, it is available in various colors and sizes, including 20, 22, 24, and 26 AWG, with multiple strand configurations for flexibility and durability. Supplied on reels or in per-meter lengths, this wire complies with UL standards, making it suitable for automation, control panels, and wiring installations that demand insulation resistance, temperature resilience, and reliable conductors in harsh environments. It’s ideal for professional wiring and electrical assemblies requiring excellent performance.
MULTICOMP-PRO PP002578 Hook-Up Wire Specifications:
- Conductor Material: Stranded Tinned Copper
- Insulator Material: SR PVC
- Rated Temperature: 280°C
- Rated Voltage: 300V
- Cable Length: Available in 305m Reel or in per metre length
- AWG Sizes: 20, 22, 24, 26
- Strand Count: 34/0.18, 17/0.16, 11/0.16, 7/0.16
- Conductor Diameter: 1.21 mm, 0.76 mm, 0.61 mm, 0.49 mm
- Insulation Diameter: 1.8 mm, 1.25 mm, 1.15 mm, 1 mm
- Voltage Rating: 300V
- Temperature Resistance: 280°C
- Color Options: Black, Brown, Red, Yellow, Green/Yellow, Blue, Grey, White, Orange
Buy the Farnell Series UL1061 Hook-Up Wire: PP002578
Purchase Farnell UL1061 hook-up wire online today for your electrical projects. Constructed from stranded tinned copper with SR PVC insulation, this high-quality wire supports temperature ratings up to 280°C and voltage capacity of 300V. Available in multiple AWG sizes and colors, it provides excellent flexibility, durability, and insulation resistance. Ideal for automation, control panels, and wiring in harsh environments, this wire ensures reliable performance. Buy now for quick delivery and trusted quality for all your professional electrical wiring needs.
Get Farnell UL1061 hook-up wire today—built for high-temperature applications and reliable electrical connections.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002578?
You can click on the BUY or RFQ button to purchase PP002578 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002578?
You can download the PP002578 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002578?
MULTICOMP-PRO
