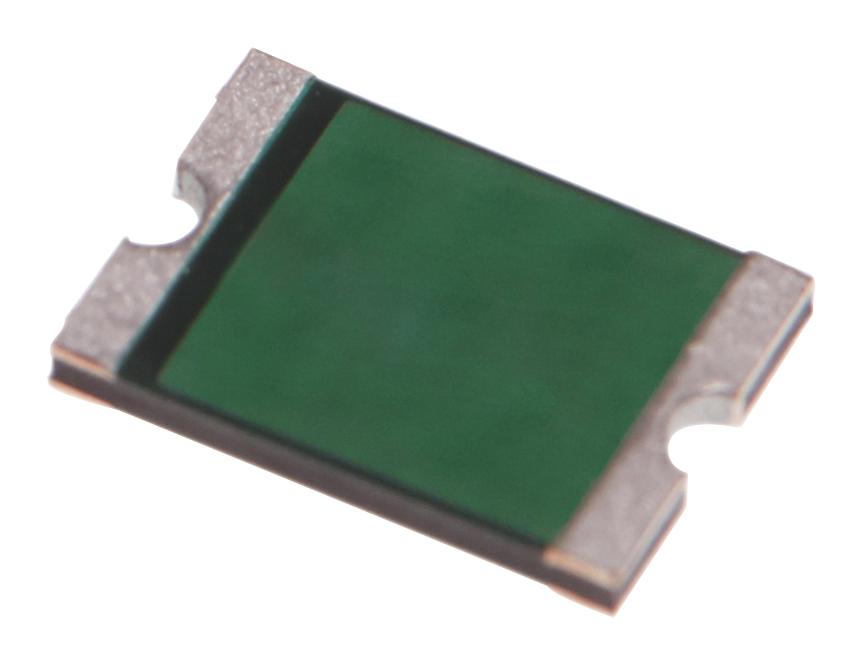

MULTICOMP PRO MC011391 Surface Mount PTC Fuse
The PTC resettable fuse is designed for surface mount applications on high-density boards, providing reliable overcurrent protection with quick trip times and a wide operating temperature range of -40°C to +85°C. Made with halogen-free materials and pure tin termination pads, it withstands various electrical stresses, including maximum voltages up to 60V DC and currents from 0.3A to 7A. Its solid-state design offers faster trip response, ensuring efficient circuit protection. Suitable for compact, modern electronic devices requiring high reliability and safety standards.
MULTICOMP PRO MC011391 Surface Mount PTC Fuse Specifications:
- Hold Current: 0.75A to 5A
- Trip Current: 1.5A to 10A
- Maximum Voltage: 6V to 60V DC
- Operating Temperature Range: -40°C to +85°C
- Maximum Power Dissipation: Up to 0.18W
- Resistance Prior to Trip: 0.09 to 0.41 ohms
- Resistance After Tripping: 0.025 to 0.075 ohms
- Pad Material: Pure Tin
- Dimensions: Length 6.73mm to 7.98mm, Width 4.8mm, Height 1.2mm
- Soldering Method: Reflow, Pb-Free compliant
- Material Compliance: RoHS, Halogen Free
Buy the Buy Multicomp Pro PTC Resettable Fuse Part Number MC011391 Online
Experience the high performance and reliability of the Multicomp Pro Surface Mount PTC Fuse MC011391. Designed for modern electronic circuits, it offers fast trip times, broad current and voltage ratings, and excellent thermal stability. Ideal for compact applications on high-density boards, this fuse ensures safety and consistent circuit protection with halogen-free, RoHS-compliant materials. Purchase online today to enhance your device’s safety features with a trusted, durable, and easy-to-install resettable fuse designed to meet demanding electronic requirements.
Get Multicomp Pro MC011391 today—built for reliable overcurrent protection, fast trip response, and wide temperature performance.
