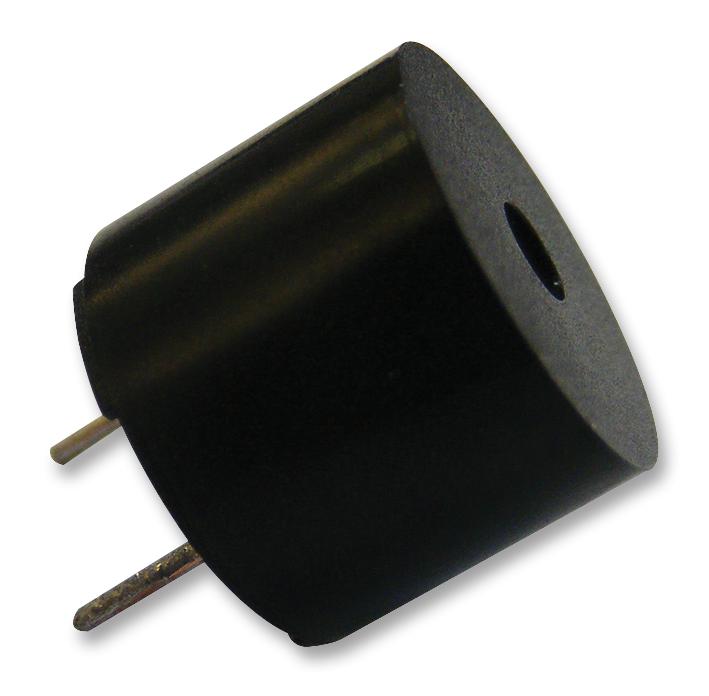

MULTICOMP PRO ABI042RC Audio Indicator
The multicomp ABI-042-RC audio indicator is a RoHS-compliant, washable, wave-solderable buzzer suitable for industrial applications. Operating between 2V DC and 3V DC with a rated voltage of 1.5V DC, it produces a loud 280dB sound at 20cm at rated voltage. Its resonant frequency is approximately 2,300Hz. The indicator features a compact design with external dimensions of 212mm outer diameter and 9.5mm depth. It withstands temperatures from -30°C to +70°C, making it ideal for diverse environments.
MULTICOMP PRO ABI042RC Audio Indicator Specifications:
- Operating Voltage: 2V DC to 3V DC
- Rated Voltage: 1.5V DC
- Maximum Rated Current at Rated Voltage: 20mA
- Sound Output at 20cm, at Rated Voltage: 280dB
- Resonant Frequency: 2,300 +400Hz
- Tone: Single
- Operating Temperature: -30°C to +70°C
- Storage Temperature: -40°C to +85°C
- Weight: 12g
- External Depth: 9.5mm
- Outer Diameter: 212mm
- Tolerance: +0.5mm
- Housing Material: Noryl
- Wave Solderable: Yes
- Washable: Yes
Buy the Multicomp ABI-042-RC – Reliable Audio Indicator for Industrial Applications
Enhance your industrial signaling systems with the reliable multicomp ABI-042-RC audio indicator. This RoHS-compliant, washable buzzer delivers a powerful 280dB sound at 20cm, operating at 2-3V DC. Its compact design features a durable Noryl housing, external dimensions of 212mm diameter and 9.5mm depth, making it suitable for various industrial environments. With a resonant frequency of approximately 2,300Hz, it withstands temperatures from -30°C to +70°C. Purchase online today and ensure your alert systems perform reliably in demanding conditions.
Buy multicomp ABI-042-RC now and experience unmatched reliability and performance in industrial alert systems and signaling devices.
