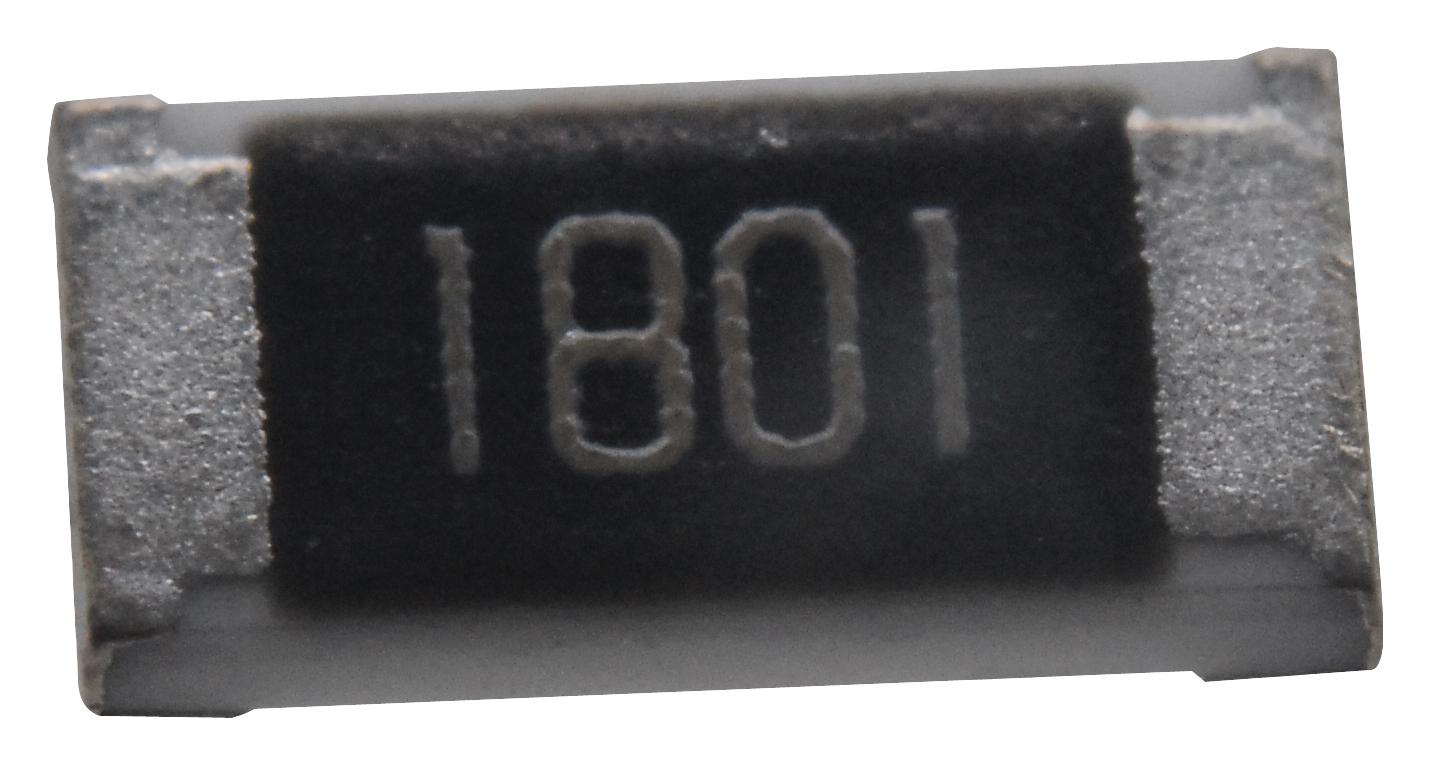

MULTICOMP PRO MC0125W1206110K Thick Film Resistors
The Multicomp Pro MC series thick film chip resistors offer a broad resistance range from 1 ohm to 10 megaohms, covering E96 and E24 values. Available in standard sizes including 1206, 0805, 0603, and 0402, they are designed for compact applications with low weight. Suitable for wave and reflow soldering, these resistors help lower assembly costs. Featuring maximum working voltages from 50V to 200V depending on size, they include tolerance options of ±1%, ±2%, and ±5%. Rated power ranges from 62.5mW to 125mW with temperature coefficient from ±400ppm/°C to ±100ppm/°C, operating from -55°C to +155°C, making them ideal for industrial, consumer, and automation uses.
MULTICOMP PRO MC0125W1206110K Thick Film Resistors Specifications:
- Resistance Range: 1Ω to 10MΩ
- Size Options: 1206, 0805, 0603, 0402
- Tolerance: ±1%, ±2%, ±5%
- Power Ratings: 62.5mW, 100mW, 125mW
- Maximum Working Voltage: 50V (0402, 0603), 150V (0805), 200V (1206)
- Temperature Coefficient: ±400ppm/°C (low ohms), ±100ppm/°C (above 100 ohms)
- Operating Temperature Range: -55°C to +155°C
- Suitable for wave and reflow soldering
- Low weight and small size
- Ideal for industrial control, automation, consumer electronics
- Rated highly with 4.6-star reviews, backed by 12-month warranty
Buy the Multicomp Thick Film Resistive – Reliable 1206 Resistance for Industrial Applications
Secure your Multicomp Pro thick film chip resistors today for reliable performance across diverse industrial and consumer applications. These resistors provide precise resistance values from 1 ohm to 10 megaohms, in compact sizes like 1206, 0805, 0603, and 0402. Suitable for wave and reflow soldering, they help reduce assembly costs while offering high voltage ratings and temperature stability. Rated at ±1%, ±2%, or ±5%, with operating temps from -55°C to +155°C, they are essential for automation, control systems, and manufacturing industries. Purchase online now for premium quality and warranty support.
Buy Multicomp resistors now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC0125W1206110K?
You can click on the BUY or RFQ button to purchase MC0125W1206110K from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC0125W1206110K?
You can download the MC0125W1206110K datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC0125W1206110K?
MULTICOMP PRO
