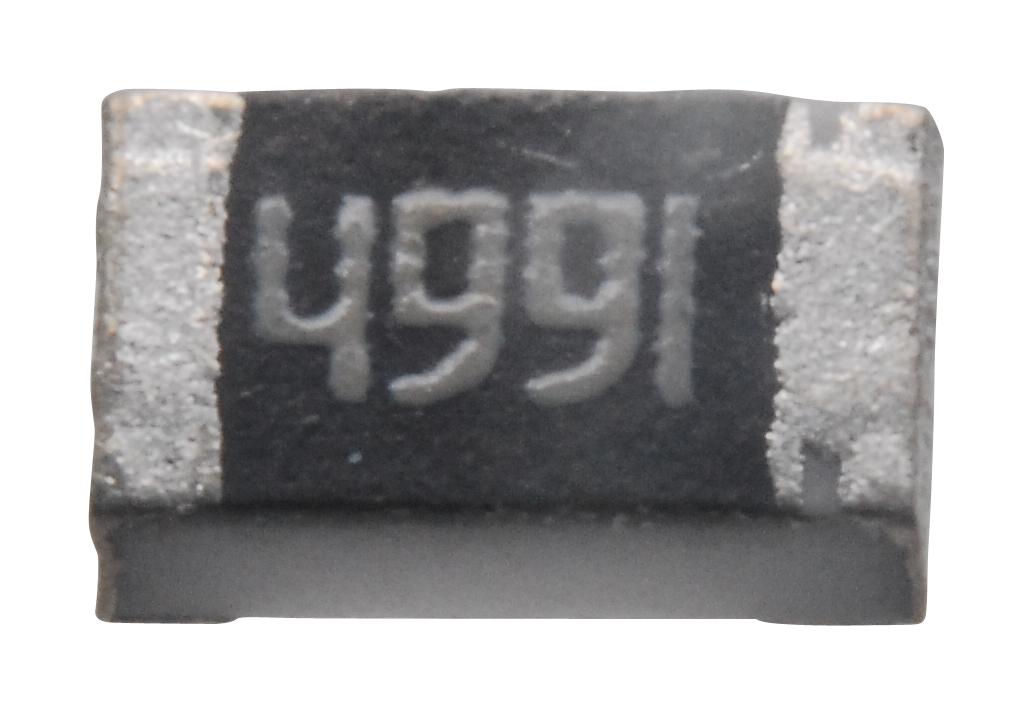

MULTICOMP PRO MC01W080514K99 Thick Film Resistors
The Multicomp Pro MC series thick film chip resistors offer resistance values ranging from 1 ohm to 10 megaohms, compatible with E96 and E24 series. Available in standard SMD sizes of 0402, 0603, 0805, and 1206, these resistors are compact and lightweight. They support both wave and reflow soldering, helping to reduce assembly costs. The maximum working voltage varies by size: 50V for 0402 and 0603, 150V for 0805, and 200V for 1206. They are available in tolerances of ±1%, ±2%, and ±5%, with power ratings of 62.5mW, 100mW, and 125mW. Temperature coefficient of resistance (TCR) ranges from ±400ppm/°C to ±100ppm/°C depending on resistance value, ensuring temperature stability. Operating temperature ranges from -55°C to +155°C. Jumpers are available for all sizes. Multicomp Pro products are rated 4.6 out of 5 stars, come with a 12-month limited warranty, and 96% of customers would recommend them to a friend.
MULTICOMP PRO MC01W080514K99 Thick Film Resistors Specifications:
- Resistance Range: 1Ω to 10MΩ
- Supported Series: E24, E96
- Sizes Available: 0402, 0603, 0805, 1206
- Maximum Working Voltage: 50V (0402, 0603), 150V (0805), 200V (1206)
- Tolerance Options: ±1%, ±2%, ±5%
- Power Ratings: 62.5mW (0402, 0603), 100mW (0805), 125mW (1206)
- Temperature Coefficient Range: ±400ppm/°C to ±100ppm/°C
- Operating Temperature: -55°C to +155°C
- Support for both wave and reflow soldering
- Rating: 4.6 out of 5 stars, 12-month warranty, 96% recommendation rate
Buy the Multicomp Series Thick Film Resistors: 0805 Resistance Value Range from 1Ω to 10MΩ
Order Multicomp MC series thick film resistors online today to enjoy reliable surface-mount components with resistance values from 1 ohm to 10 megaohms. These compact, lightweight resistors support both wave and reflow soldering, reducing assembly costs and ensuring high performance across a broad temperature range from -55°C to +155°C. Available in sizes 0402, 0603, 0805, and 1206 with tolerances of ±1%, ±2%, and ±5%, they are ideal for precise electronic applications. With a 12-month warranty and excellent customer ratings, these resistors are perfect for your surface-mount design needs.
Get Multicomp MC series thick film resistors today—built for precision and long-lasting durability, compatible with reflow soldering in surface-mount electronics.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC01W080514K99?
You can click on the BUY or RFQ button to purchase MC01W080514K99 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC01W080514K99?
You can download the MC01W080514K99 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC01W080514K99?
MULTICOMP PRO
