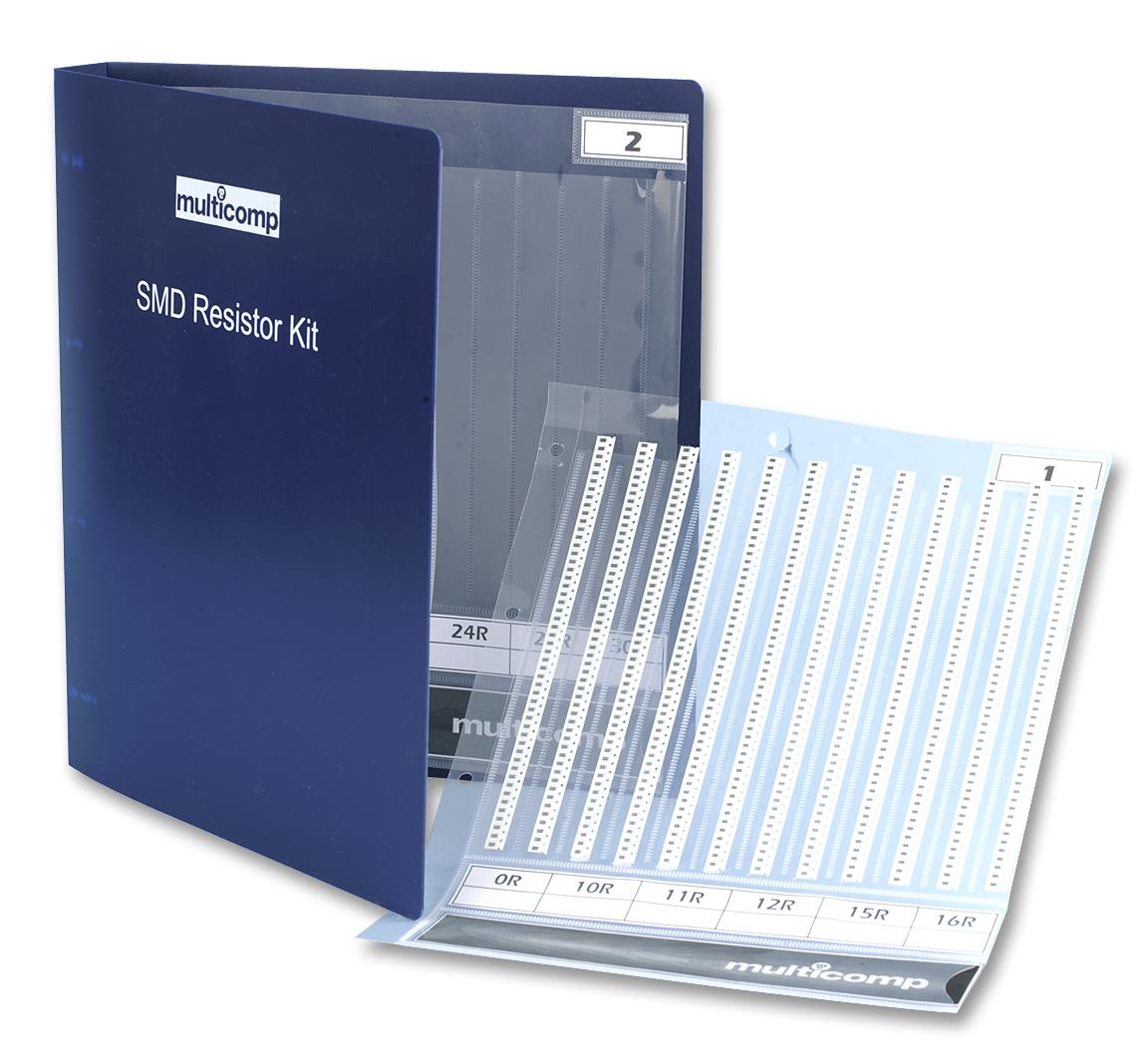

MULTICOMP PRO MC0603WGFE024KIT Surface Mount Resistor Kit
The MC0603WGFE024KIT is a surface mount resistor kit comprising E24 decade values ranging from 10 ohms to 1 megaohm in the 0603 package size. Each resistor has a power rating of 0.0625W, with an accuracy of ±1%, a maximum voltage of 50V, and a temperature range from -55°C to +155°C. These thick film resistors are suitable for industrial, power management, and consumer electronics applications, containing 121 resistance values with 100 pieces per value, totaling 12,100 resistors in the kit.
MULTICOMP PRO MC0603WGFE024KIT Surface Mount Resistor Kit Specifications:
- Power Rating: 0.0625W (1/16W)
- Resistance Range: 10Ω to 1MΩ (E24 series, 121 values)
- Tolerance: ±1%
- Maximum Voltage: 50V
- Temperature Range: -55°C to +155°C
- Package Size: 0603
- Resistive Construction: Thick film
- Marking: E24 series, 1% tolerance
- Ambient Temperature: 70°C
- Insulation Resistance: 1,000 MQ or more
- Dielectric Withstanding Voltage: 500V AC for 1 min
- Solderability: Min 95% coverage at 245°C for 2-3 sec
- Soldering Conditions: Reflow and wave soldering compatible
- Resistance Coefficient: 100 PPm/°C for 1kΩ to 10kΩ, higher for other ranges
- Load Life Stability: Resistance change <1% after 1,000 hours at RCWV in humidity
- Package Includes: 100 pcs per resistance value, total of 12,100 resistors
Buy the Buy multicomp Surface Mount Resistor Part Number MC0603WGFE024KIT Online
Order the multicomp Surface Mount Resistor Kit online today to access a wide range of resistor values in a small 0603 package. Perfect for industrial, consumer electronics, and power management applications, this kit offers 121 resistance values with 100 pieces each, 0.0625W power rating, and ±1% tolerance. Easy to solder with high resistance to heat and humidity, ensuring stable and accurate performance for demanding electronic projects. Get your comprehensive resistor kit now for convenient, reliable component sourcing.
Buy multicomp MC0603WGFE024KIT now and experience reliable performance with a comprehensive resistor kit suitable for industrial electronics and power management.
