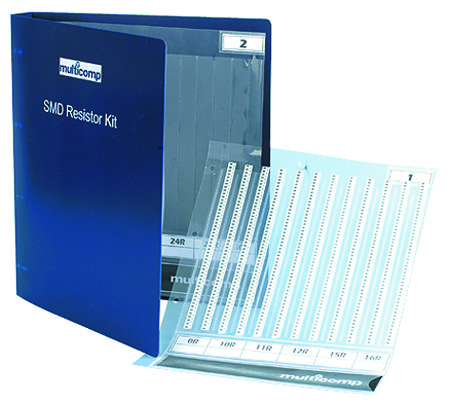

MULTICOMP PRO MC0603WGJE006KIT Surface Mount Resistor Kit
The MC0603WGJE006KIT is a resistor kit that includes 100 pieces of each of 32 different 0603 size resistors, with nominal resistance values ranging from 10 ohms to 1 megaohm. These resistors are rated for continuous full load operation at an ambient temperature of 70°C, making them suitable for various test and measurement applications. Multicomp Pro products are rated 4.6 out of 5 stars, come with a 12-month limited warranty, and are recommended by 96% of customers for their quality and reliability.
MULTICOMP PRO MC0603WGJE006KIT Surface Mount Resistor Kit Specifications:
- Type: MC 0603
- Power Rating: 0.0625W (1/16W) at 70°C
- Resistance Range: 10Ω to 1MΩ (E6 series ±5%) or specific E24 series values
- Tolerance: 5%
- Resistance Tolerance: ±5%
- Dimensions: Length 1.6 mm, Width 0.8 mm, Height 0.45 mm
- Temperature Range: -55°C to +155°C
- Peak Voltage: 75V
- Max Overload Voltage: 150V
- Dielectric Withstanding Voltage: 300V
- Termination: Sn outer, Ni barrier middle, Ag resistive element
- Solderability: 95% coverage minimum at 245°C for 2-3 seconds
- Insulation Resistance: ≥1000 MΩ
- Temperature Coefficient: +400 PPM/°C for 1Ω-10Q, +200 PPM/°C for 10Q-100Q, +100 PPM/°C for >100Q
- Thermal Cycling: Resistance change ≤1%
- Load Life in Humidity: Resistance change ≤3% after 1000 hours at 40°C and 90-95% humidity
- Soldering Conditions: Wave and reflow soldering compatible, peak temp. 260°C
Buy the Multicomp Series 0603 Surface Mount Resistor Kit: MC0603WGJE006KIT
Order the Multicomp Series 0603 Surface Mount Resistor Kit featuring 1024 resistors with resistance values from 10Ω to 1MΩ. Rated for 70°C operation, these resistors are perfect for testing, measurement, and general electronic circuit applications. Each resistor features RoHS compliance, high stability, and reliable solderability, making them suitable for professional and hobbyist electronics. With 12-month warranty and excellent user ratings, this kit provides quality components essential for your circuit assembly and troubleshooting needs.
Buy Multicomp Series 0603 Surface Mount Resistor Kit MC0603WGJE006KIT now and experience unmatched reliability and precise resistance values for your electronic projects.
