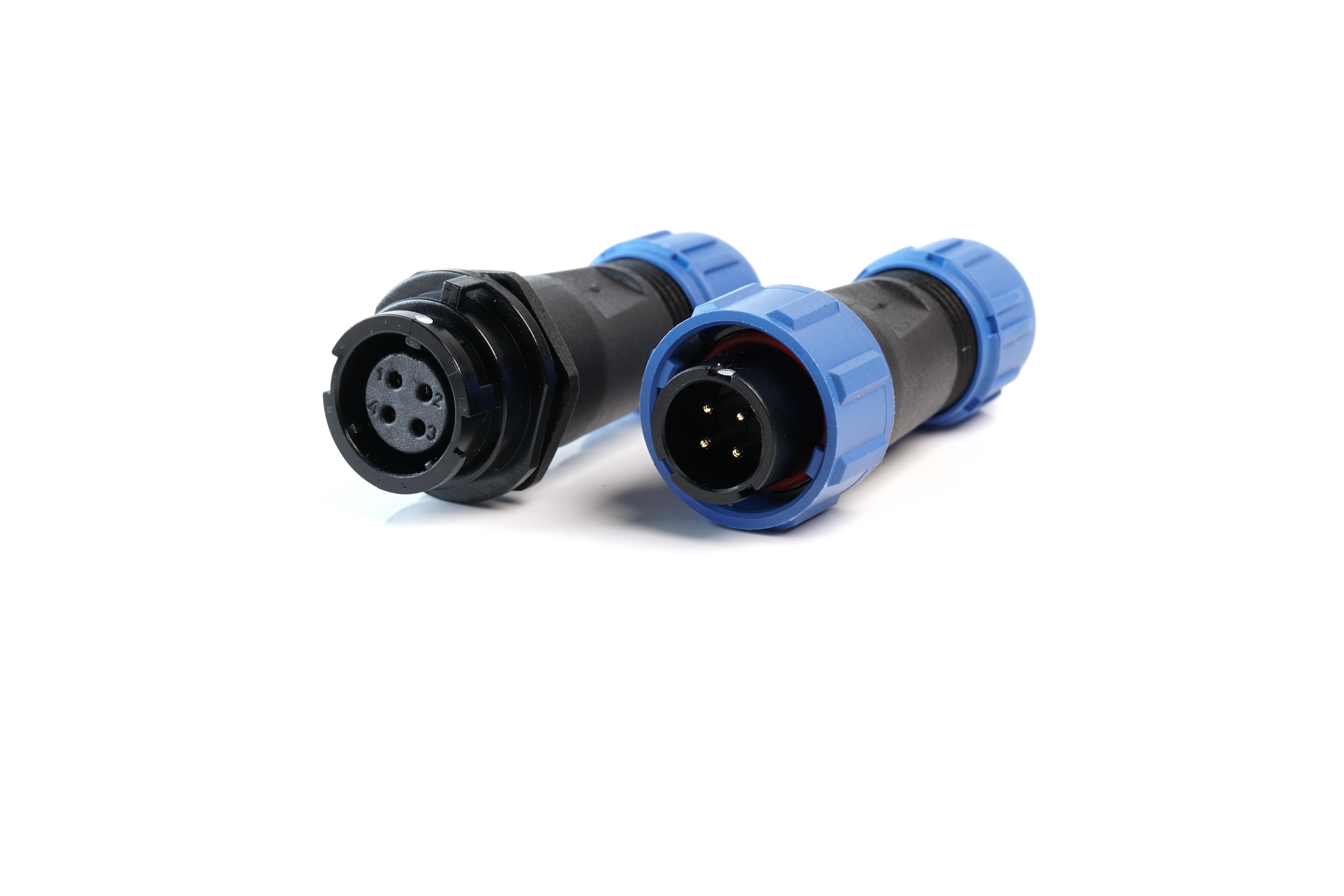

MULTICOMP-PRO MP002643 circular connector
The MP-T13 IP67 series connectors are rugged and weatherproof, designed with bayonet coupling for quick assembly. These versatile connectors come in panel, cable, and in-line configurations, enabling reliable cable-to-panel or cable-to-cable connections. Rated at IP67, they provide excellent protection against dust and water ingress, making them suitable for outdoor and harsh environments. They feature solder terminations, a 13mm cut-out, and multiple pole options—2, 3, 4, 5, and 7 poles. An IP67 dust cap enhances sealing, ideal for automation, industrial, medical, and security applications requiring durable connectivity solutions.
MULTICOMP-PRO MP002643 circular connector Specifications:
- IP67 waterproof rating for outdoor and harsh environments
- Coupling Type: Bayonet
- Material: Nylon66 shell, PPS insert, Brass contact with gold plating
- Contact Termination: Solder
- Rated Current: 13 A (2 poles), 5 A (3-7 poles)
- Rated Voltage: 250 V (2 poles), 200-125 V (3-7 poles)
- Contact Diameter: 1.6 mm (2 poles), 1 mm (3 poles), 1 mm (4-7 poles)
- Maximum Temperature: 260°C for insert material
- Temperature Range: -40°C to +80°C
- Mating Cycle: 500
- Insulation Resistance: 2000 MQ
- Compatible with cable diameter range: 4mm to 6.5mm / 5mm to 8mm
- Includes dust caps for sealing
- Various configurations available: panel, cable, in-line cable mount
- Includes multiple pole options: 2, 3, 4, 5, 7 poles
Buy the Brand IP67 Connector – Reliable Circular Connectors for Industrial Applications
Enhance your industrial or outdoor systems with our durable IP67 circular connectors, featuring bayonet coupling for quick connection. These connectors come in panel, cable, and inline configurations, accommodating 2 to 7 poles, with solder terminations for secure wiring. Rated at IP67, they resist dust and water ingress, ideal for automation, security, and medical equipment setups. The robust materials include nylon shells and brass contacts with gold plating, supporting high reliability, up to 500 mating cycles, and operating over a temperature range of -40°C to +80°C. Purchase online now for dependable, weatherproof connectivity that lasts.
Get Brand MP-T13 IP67 connectors today—built for durable outdoor and industrial environments with quick bayonet connection.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002643?
You can click on the BUY or RFQ button to purchase MP002643 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002643?
You can download the MP002643 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002643?
MULTICOMP-PRO
