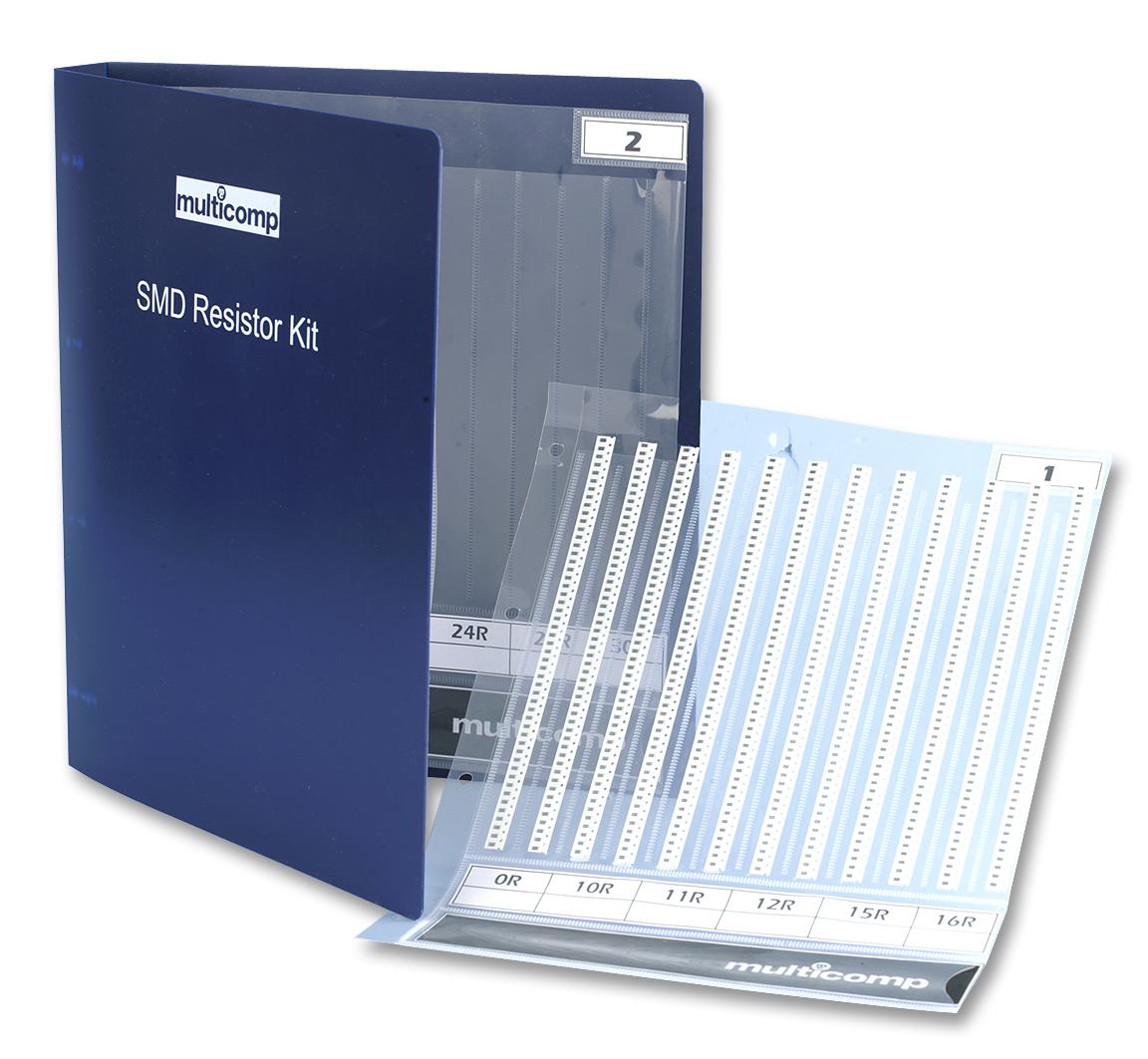

MULTICOMP PRO MC0805WAFE024KIT Surface Mount Resistor Kit
The MC0805WAFE024KIT is a surface mount resistor kit featuring E24 decade values from 10 ohms to 1 megaohm in an 0805 package. Each resistor has a power rating of 0.1W, with a ±1% tolerance and a maximum working voltage of 150V. The resistors are thick film type, suitable for various applications including industrial, power management, and consumer electronics. The kit contains 12,100 resistors across 121 different values, with 100 pieces per value. Additionally, jumpers are available for versatile use. Rated at 4.6 out of 5 stars by Multicomp Pro, the product includes a 12-month limited warranty and enjoys high customer satisfaction, with 96% recommending it to a friend.
MULTICOMP PRO MC0805WAFE024KIT Surface Mount Resistor Kit Specifications:
- Type: Thick film surface mount resistors
- Package Size: 0805
- Power Rating: 0.1W (1/10W)
- Resistance Range: 10 ohms to 1 megaohm (E24 series)
- Resistance Tolerance: ±1%
- Maximum Working Voltage: 150V
- Maximum Overload Voltage: 300V
- Temperature Range: -55°C to +155°C
- Resistance Change Rate: ±100 ppm/°C (for 1MΩ), ±400 ppm/°C (for 10Ω)
- Solderability: 95% coverage min. at 245°C for 2-3 seconds
- Insulation Resistance: ≥ 1000 MΩ at 500V DC
- Dielectric Withstanding Voltage: 500V AC for 1 minute
- Dimensions: Length 2.0 ±0.1mm, Width 1.25 ±0.15mm, Height 0.55mm
- Number of Values: 121 across the E24 series
- Quantity per Value: 100 resistors
- Compliance: RoHS
Buy the Buy Multicomp Surface Mount Resistor Kit Part Number MC0805WAFE024KIT Online
Discover the power of versatility with this comprehensive surface mount resistor kit, featuring 121 values from 10 ohms to 1 megaohm. Perfect for industrial, power management, and electronic applications, each resistor offers 0.1W power rating, ±1% tolerance, and is compliant with RoHS standards. Packaged in the compact 0805 size, the resistors are easy to solder and ensure high performance under different temperature conditions. Ideal for engineers and technicians, this kit guarantees reliable, precise, and ready-to-use components for your projects.
Buy Multicomp MC0805WAFE024KIT now and experience high accuracy and reliability with a comprehensive resistor kit suitable for all your electronic needs.
