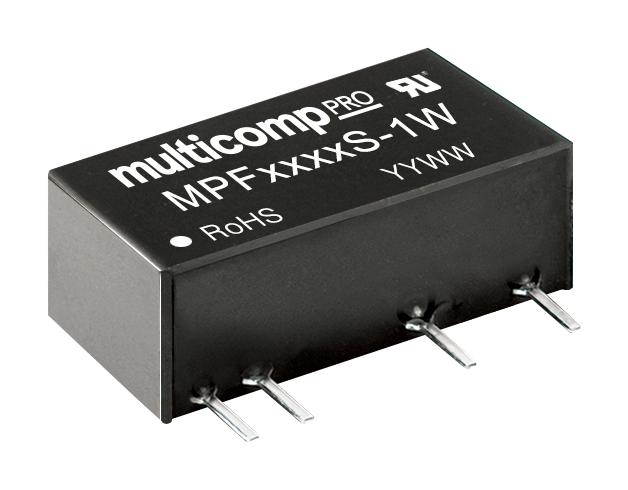

MULTICOMP-PRO MPF2415S1W DC-DC Converter
This 1W isolated DC to DC converter offers reliable single and dual output power solutions with high efficiency up to 81%, continuous short-circuit protection, and a wide temperature range from -40°C to +105°C. Designed for distributed power systems, it provides galvanic isolation of 3k VDC, making it ideal for digital, analog, relay, and data switching circuits. Its industry-standard pin configuration, RoHS compliance, and robust construction ensure seamless integration into various applications requiring compact, efficient, and secure power conversion modules.
MULTICOMP-PRO MPF2415S1W DC-DC Converter Specifications:
- Input Voltage: 12V, 15V, or 24V DC with surge up to 21V or 30V
- Output Voltage: 3.3V, 5V, 12V, 15V, or 24V DC
- Output Current: up to 415mA depending on model
- Isolation Voltage: 3k VDC
- Efficiency: Up to 81%
- Operating Temperature Range: -40°C to +105°C
- Dimensions: 19.65 x 6 x 10.16 mm
- Weight: 2.1g
- Vibration Resistance: 5G at 10–150Hz
- MTBF: 3500 hours
- EMC Compliance: CE CISPR32/EN55032 Class B
- Short-Circuit Protection: Continuous, self-recovery
- Input Ripple Current: 18-30mA
- Soldering Resistance: 10 seconds at 300°C
- Insulation Resistance: 1000 MΩ at 500VDC
- Input-Output Capacitance: 20pF
- Soldering Pin Distance: 1.5mm from case
Buy the Buy multicomp Isolated DC-DC Converter Part Number MPF2415S1W Online
Purchase the multicomp MPF2415S1W online today to ensure your power conversion needs are met with compact design, high efficiency up to 81%, and reliable galvanic isolation of 3k VDC. This 1W isolated converter is perfect for digital, analog, and relay-driven circuits, providing wide operating temperature, low no-load current, and industry-standard pin configuration. Enjoy fast delivery and trusted quality for industrial applications, data switching, and distributed power systems. Order now for seamless integration into your electronic projects.
Buy multicomp MPF2415S1W now and experience reliable performance with high efficiency and robust short-circuit protection in your digital or analog circuits.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MPF2415S1W?
You can click on the BUY or RFQ button to purchase MPF2415S1W from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MPF2415S1W?
You can download the MPF2415S1W datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MPF2415S1W?
MULTICOMP-PRO
