MULTICOMP PRO MC1210B103K631CT High Voltage Ceramic Capacitor
The middle and high voltage multilayer ceramic capacitors are designed with specialized internal electrode patterns to evenly distribute voltage gradients. Suitable for high voltage applications like snubbers, high voltage coupling, DC-DC converters, and lighting inverters, these capacitors offer high stability, reliability, and increased capacitance in compact sizes. They are RoHS compliant, with dielectric options including NPO, X7R, and Y5V, rated from 200V to 3kV. Proper storage, handling, and soldering procedures ensure optimal performance, making them ideal for industrial and electronic circuit use.
MULTICOMP PRO MC1210B103K631CT High Voltage Ceramic Capacitor Specifications:
- Dielectrics: NPO, X7R, Y5V
- Rated Voltage: 200V to 3kV
- Capacitance Range: 0.5pF to 8.2μF (varies by dielectric and size)
- Physical Sizes: 0603, 0805, 1206, 1210, 1808, 1812 mm
- Dimensions (approximate): Length 1.6-3.2 mm, Width 0.8-1.6 mm, Thickness ~0.07-0.2 mm
- Temperature Range: NPO (-55°C to +125°C), X7R (-55°C to +125°C), Y5V (-25°C to +85°C)
- Capacitance Tolerance: ±5%, ±10%, or ±20% depending on code
- Insulation Resistance: ≥ 10^6 MΩ at rated voltage
- Dielectric Strength: 500-999V AC for NPO, up to 3kV for others
- Temperature Coefficient: NPO within +30ppm/°C, X7R within ±15%, Y5V within +30%/-80%
- Termination: Ni/Sn lead-free solderable finish
- Storage Conditions: 5°C to 40°C, 20-70% humidity, use within one year
- Soldering: Reflow soldering recommended at 235°C for 3-5 seconds, wave soldering at 260°C

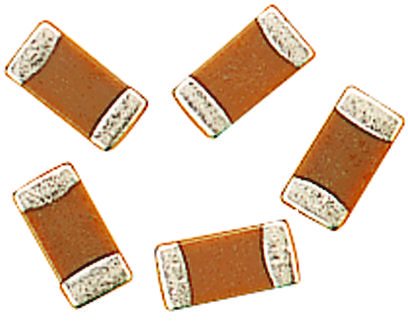

Buy the Multicomp 1210C103K631CT – Reliable High Voltage Ceramic Capacitors for Industrial Applications
Purchase the Multicomp 1210C103K631CT online today to enjoy high reliability, perfect capacitance stability, and safety for power converters, high-frequency circuits, and industrial electronics. With a wide voltage range from 200V to 3kV and dielectrics including NPO, X7R, and Y5V, this capacitor ensures optimal performance in demanding environments. Easy to solder with lead-free Ni/Sn terminations, it offers excellent temperature stability and durability. Order now to enhance your industrial electronic solutions with proven quality and reliability.
Buy Multicomp 1210C103K631CT now and experience unmatched reliability and high voltage performance perfect for demanding industrial use.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC1210B103K631CT?
You can click on the BUY or RFQ button to purchase MC1210B103K631CT from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC1210B103K631CT?
You can download the MC1210B103K631CT datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC1210B103K631CT?
MULTICOMP PRO
