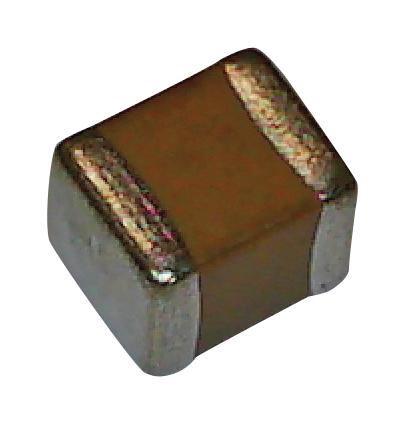

MULTICOMP PRO MC1210N221J202CT High-Voltage Ceramic Capacitor
The MC1210N221J202CT is a high-voltage multilayer ceramic capacitor designed with a special internal electrode pattern that reduces voltage concentration and increases capacitance in a compact form factor. Suitable for applications like snubbers, high-voltage coupling, DC blocking, and DC-DC converters, it features RoHS compliance, reflow soldering compatibility, and stable electrical characteristics across temperatures. Available with various dielectric types including NPO, X7R, and Y5V, this capacitor offers reliable performance in demanding industrial and high-frequency power environments.
MULTICOMP PRO MC1210N221J202CT High-Voltage Ceramic Capacitor Specifications:
- Size: 1210 (3225) mm: 4.0 x 3.2
- Rated Voltage: 200V to 3kV depending on dielectric type
- Capacitance Range: 0.5pF to 8.2uF (varies with dielectric type and size)
- Dielectric Types: NPO, X7R, Y5V
- Electrical Characteristic Tolerance: ±5%, ±10%, ±20%, ±80%
- Operating Temperature: -55°C to +125°C (NPO), -55°C to +125°C (X7R), -25°C to +85°C (Y5V)
- Insulation Resistance: ≥ 2500 MΩ at rated voltage
- Dielectric Strength: 500V~999V: 1.5×WVDC; 1000V~3000V: 1.2×WVDC
- Termination: Ni/Sn (lead-free)
- Storage Conditions: Store at 5-40°C, humidity 20-70%, use within 1 year of shipment
- Soldering Conditions: Reflow soldering recommended at 235±5°C, 2-3 sec; wave soldering at 260±5°C for 10 sec
- Reliability Testing: Meets industry standards with test conditions including temperature cycling, vibration, humidity, and dielectric strength.
Buy the Multicomp 1210N221J202CT – Reliable High-Voltage Ceramic Capacitor for Industrial Applications
Order the Multicomp high-voltage ceramic capacitor today for dependable performance in power converters, snubbers, and high-frequency industrial applications. Designed with advanced internal electrode patterning and select dielectric materials like NPO, X7R, and Y5V, this capacitor ensures excellent stability, reliability, and compact size suitable for reflow soldering processes. Its high dielectric strength and temperature tolerance make it ideal for demanding environments. Purchase online now to benefit from quick delivery, competitive pricing, and assured quality for your industrial and electronic projects.
Get Multicomp 1210N221J202CT today—built for precision, stability, and long-lasting durability in demanding high-voltage environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC1210N221J202CT?
You can click on the BUY or RFQ button to purchase MC1210N221J202CT from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC1210N221J202CT?
You can download the MC1210N221J202CT datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC1210N221J202CT?
MULTICOMP PRO
