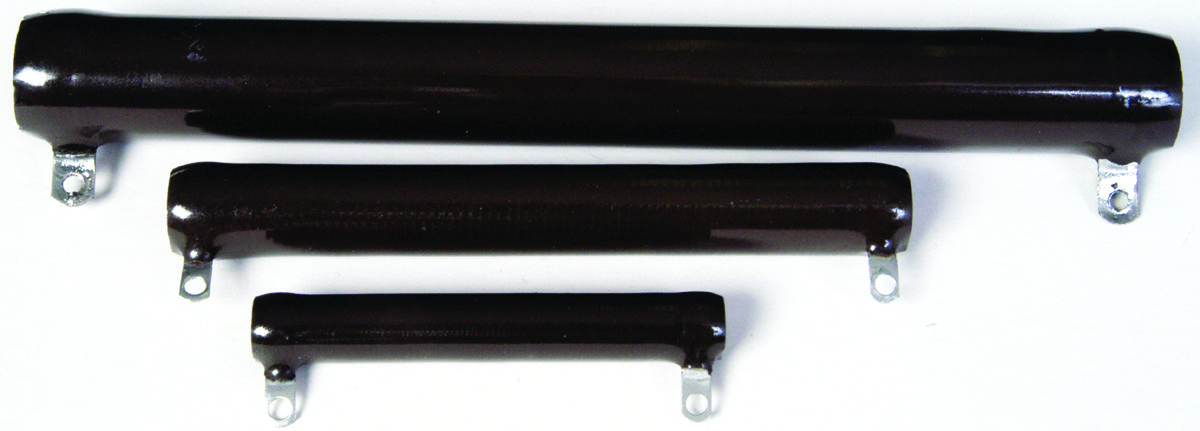

MULTICOMP PRO MC14662 High Power Vitreous Resistor
The MC14662 is a high power 100-ohm wire-wound resistor with a tubular ceramic core and vitreous enamel coating, designed for severe environmental conditions. It features solder-coated radial lug terminals, adjustable resistance, and a 25°C power rating of 50W, which fully utilizes the resistance when installed correctly. Its construction ensures excellent thermal stability and durability, making it ideal for industrial and electrical applications requiring reliable performance under high loads. This resistor belongs to the Multicomp Pro series, known for quality and dependability, backed by a 12-month warranty.
MULTICOMP PRO MC14662 High Power Vitreous Resistor Specifications:
- Power Rating at 25°C: 50W
- Resistance Range: 2.72 to 430kΩ
- Resistance Tolerance: ±5%
- Temperature Coefficient: 75ppm/°C
- Dimensions: Not specified, but designed for high wattage applications
- Construction Material: Vitreous enamel coating, Ni-Cr wire element
- Mechanical Protection: Vitreous enamel
- Connections: Solder-coated radial lug terminals
- Environmental Limits: -55°C to +450°C, Climatic Category: -55°C/+200°C/56 days
- Maximum Voltage: Up to 5,000V
- Features: Rugged construction, RoHS compliance, suitable for severe environments
Buy the Multicomp Series High Power Vitreous Resistor: MC14662
Order the High Power Vitreous Resistor from Multicomp Pro online today and benefit from superior construction, high wattage capacity, and reliable performance in demanding environments. Designed with a vitreous enamel coating and robust Ni-Cr wire elements, this resistor offers excellent thermal stability and mechanical durability. Perfect for industrial applications, it supports high voltages up to 5,000V and provides consistent resistance with ±5% tolerance. Purchase now to ensure your projects are equipped with a dependable, RoHS-compliant resistor that withstands severe environmental conditions and high power loads.
Buy Multicomp Series MC14662 high power vitreous resistor now and experience unmatched durability, thermal stability, and reliable high load performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC14662?
You can click on the BUY or RFQ button to purchase MC14662 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC14662?
You can download the MC14662 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC14662?
MULTICOMP PRO
