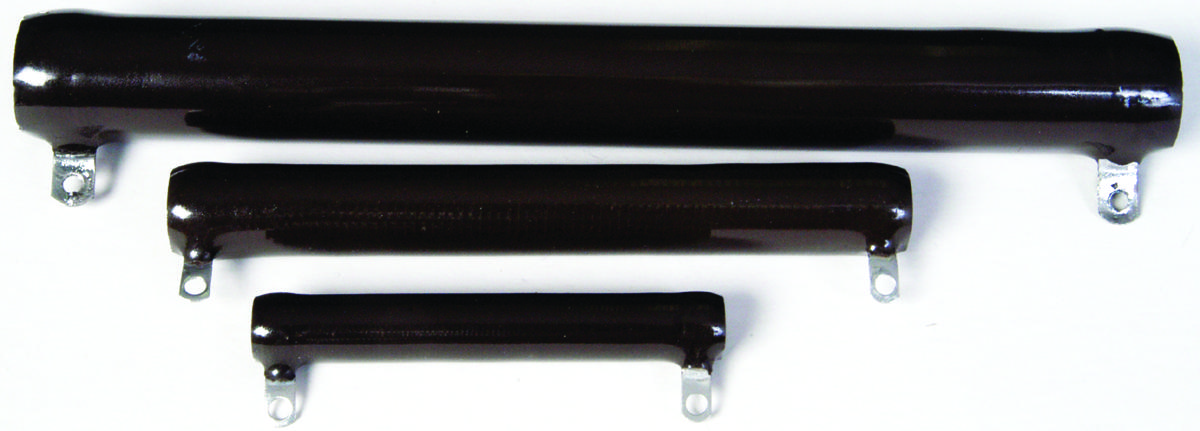

MULTICOMP PRO MC14683 Wirewound Resistor
The MC14683 is an adjustable wire-wound resistor with a tubular ceramic core and lead-free vitreous enamel coating. It features solder-coated radial lug terminals and is rated for power at 25°C in free air, suitable for high-power applications. The resistor's wattage capacity diminishes linearly when using an intermediate lug point. Designed for precision resistance adjustments, it is ideal in electronic circuits requiring reliable control. This robust component from the Multicomp Pro series offers durability and accurate performance under varying thermal conditions, making it suitable for various industrial and electronic applications.
MULTICOMP PRO MC14683 Wirewound Resistor Specifications:
- Material: Coating: Lead free vitreous enamel
- Core: Tubular Ceramic
- Terminals: solder-coated radial lug
- Wattage Rating: Based on 25°C free air rating
- Overload Capacity: 10 times rated wattage for 5 sec
- Temperature Coefficient: 1Q to 200: +400 ppm/°C, Above 200: +260 ppm/°C
- Dielectric Withstanding Voltage: 25W, 50W, 100W: 1000V AC, 225W: 3000V AC
- Dimensions: Length approximately 0.563 inches, diameter approximately 0.313 inches, with variations
- Resistance Tolerance: ±5%
- Resistance Range: from 1 ohm to 100000 ohms
- Usage: Suitable for high-power electronic and industrial applications
- Environmental: RoHS compliant, lead-free coating, rated for thermal endurance
Buy the Multicomp Series Wirewound Resistor: MC14683
Order the Multicomp MC14683 wirewound resistor online today for reliable performance in high-power and industrial electronic circuits. This adjustable resistor features a ceramic core, vitreous enamel coating, and solder-coated radial lug terminals, ensuring durability and precise resistance control. Its high wattage ratings—up to 225W—make it suitable for demanding applications, and the RoHS compliance guarantees environmentally friendly construction. Whether for power regulation, load testing, or circuit protection, this resistor provides consistent, accurate results, shipped quickly for your convenience.
Get Multicomp MC14683 today—built for precision and long-lasting durability in high-power applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC14683?
You can click on the BUY or RFQ button to purchase MC14683 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC14683?
You can download the MC14683 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC14683?
MULTICOMP PRO
