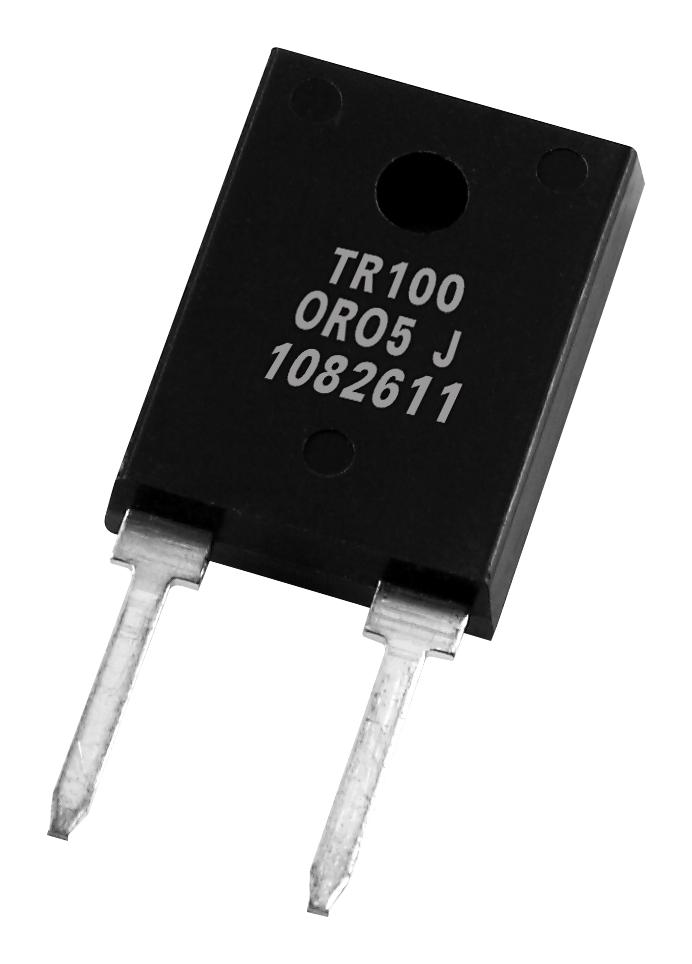

MULTICOMP PRO MCTR100JDD0180 High Power Resistor
The Power Resistors are high-power, heat sink-mounted components capable of dissipating 100 watts at 25°C. Designed in a TO-247 package, they feature a molded, electrically isolated case with a non-inductive design suitable for applications like gate resistors, snubbers, and voltage regulation. They are RoHS compliant, constructed with alumina substrate, resistor layer, and tinned copper leads, and rated for a maximum operating voltage of 700V. These resistors withstand high temperatures from -65°C to +175°C and are ideal for demanding electronic and industrial power applications.
MULTICOMP PRO MCTR100JDD0180 High Power Resistor Specifications:
- Power: 100 watts at 25°C case temperature
- Package: TO-247 style
- Construction: Alumina substrate, resistor layer, molded case with electrical isolation
- Maximum Operating Voltage: 700V
- Dielectric Strength: 1,800V AC
- Insulation Resistance: 10GΩ min.
- Operating Temperature Range: -65°C to +175°C
- Resistance Range: 0.050Ω to 1000kΩ
- TCR: -100 to +300 PPM/°C depending on type
- Lead Material: Tinned Copper
- Case Temperature: Verified on heat sink, tested with thermal grease
- Dimensions: Specific to TO-247 form factor, approximately 0.147in x 0.3in (3.73mm x 7.62mm)
- Environmental Test Standards: Load life, moisture resistance, thermal shock, vibration
- Construction Materials: Alumina ceramic, copper leads, molded case
Buy the Buy multicomp series Power Resistors Part Number MCTR100JDD0180 Online
Purchase the multicomp series high-power resistor MCTR100JDD0180 online for robust 100W power handling, heat sink mounting, and excellent temperature stability. Ideal for power supplies, snubbers, and voltage regulation, these resistors feature a TO-247 package with molded, electrically isolated, non-inductive design. Their construction includes alumina substrates and copper leads to ensure durability and high-performance operation from -65°C to +175°C. The maximum operating voltage of 700V and dielectric strength of 1,800V AC make them suitable for various demanding industrial power applications. Buy now for reliable, high-quality power regulation solutions.
Order your multicomp series MCTR100JDD0180 high-power resistors today and ensure reliable performance in demanding electronic and industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTR100JDD0180?
You can click on the BUY or RFQ button to purchase MCTR100JDD0180 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTR100JDD0180?
You can download the MCTR100JDD0180 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTR100JDD0180?
MULTICOMP PRO
