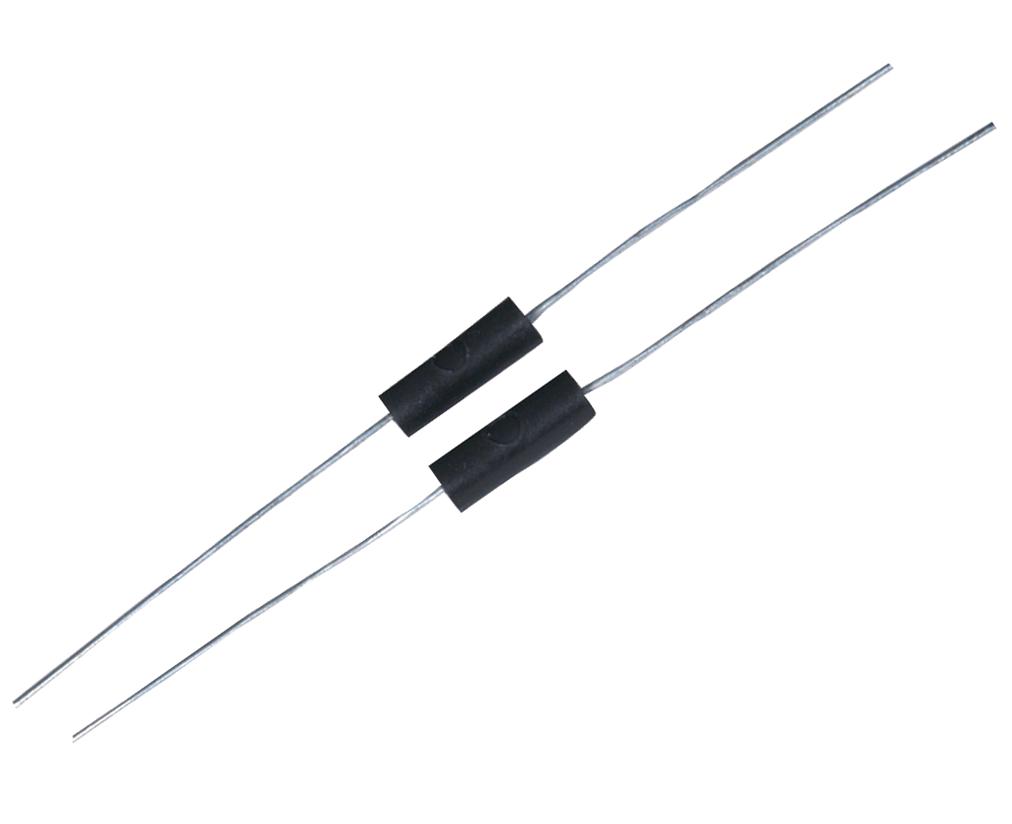

MULTICOMP PRO MC14718 High Power Resistor
The MC14718 is a low ohm axial lead resistor with a power rating of 3W, designed for high-current applications. It features silicone coating and solder-plated copper terminals for reliable connectivity. The resistor operates effectively over a temperature range of -55°C to 275°C and has a dielectric withstand voltage of 1,000 VRMS for 5W models. With a low temperature coefficient of resistance, it ensures stability and precision in circuit performance. Suitable for industrial applications requiring robust, high-current resistors with excellent electrical characteristics.
MULTICOMP PRO MC14718 High Power Resistor Specifications:
- Power Rating: 3W at +25°C in free air
- Temperature Range: -55°C to 275°C
- Dielectric Withstanding Voltage: 1,000 VRMS for 5W models
- Insulation Resistance: Not Less Than 1,000 MQ
- Temperature Coefficient of Resistance: 700 ppm/°C
- Material: Silicone coating with solder-plated copper terminals
- Dimensions: Length approximately 0.925 inches, Diameter approximately 0.33 inches
- Derating: Linearly from 100% at +25°C to 0% at +275°C
- Overload Capability: 5 times rated wattage for 5 seconds
- Certifications: RoHS Compliant
Buy the Buy Multicomp Axial Lead Resistor Part Number MC14718 Online
Purchase the high power axial lead resistor MC14718 online for industrial and electronics projects. Designed for robust performance, it features silicone coating, solder-plated copper terminals, and a wide operating temperature range from -55°C to 275°C. Its dielectric withstand voltage of 1,000 VRMS makes it suitable for demanding applications. With a power rating of 3W, it ensures stability under high load conditions. Order now to enhance your circuit reliability and enjoy fast shipping from trusted suppliers.
Order your Multicomp axial lead resistor MC14718 today and ensure your circuits handle high currents reliably with excellent thermal stability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC14718?
You can click on the BUY or RFQ button to purchase MC14718 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC14718?
You can download the MC14718 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC14718?
MULTICOMP PRO
