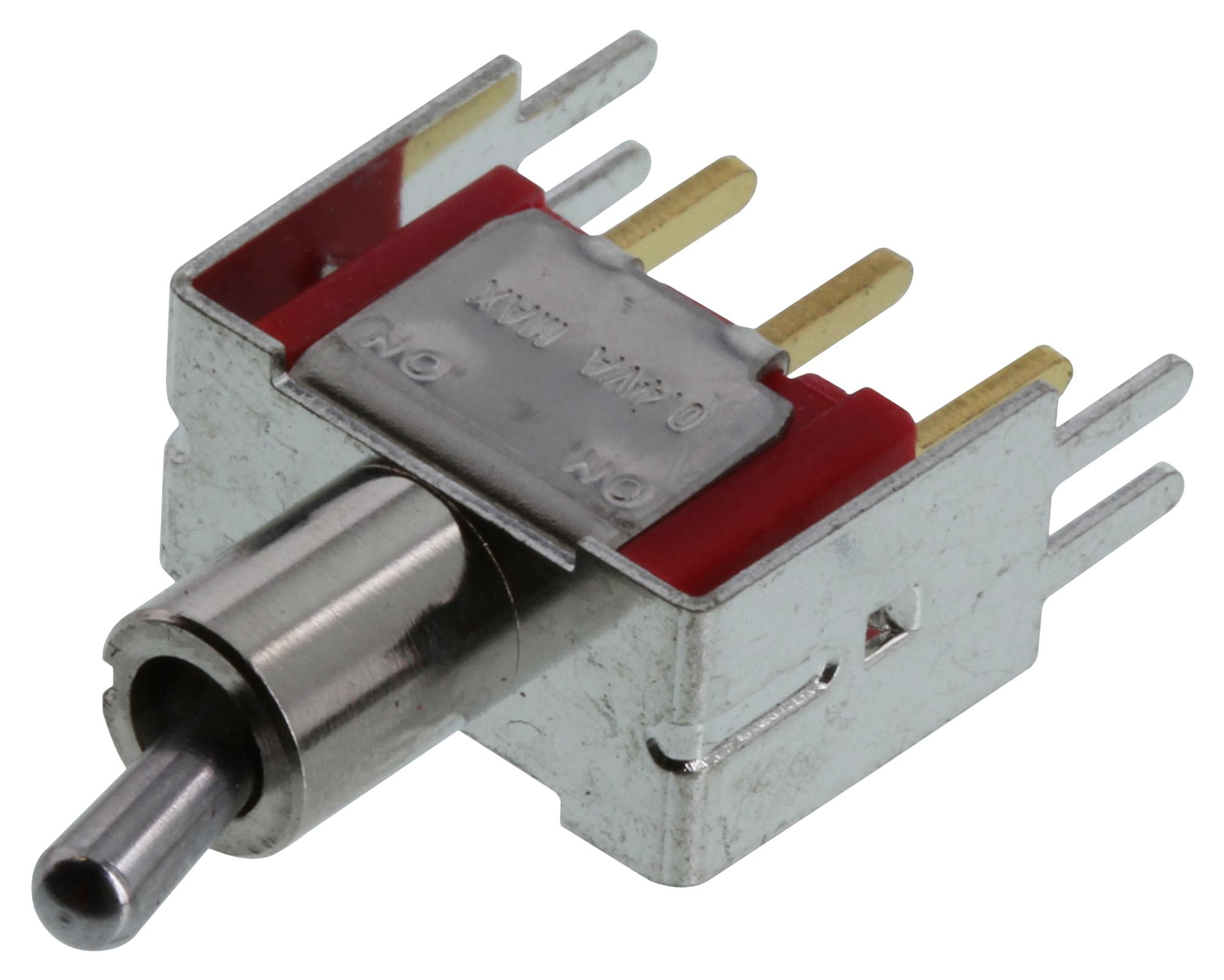

MULTICOMP PRO MC1MS1T2B4V2RE Miniature Toggle Switch
The miniature toggle switch offers reliable performance with a compact design suitable for PCB mounting. It features an SPDT configuration with on-none-on switching, providing versatile control options. The switch's actuator height is 5.08mm, with a bushing height of 7.10mm and a vertical terminal height of 11.68mm. Made with durable materials such as brass, copper alloy, and stainless steel, it ensures excellent electrical and mechanical performance. Suitable for various electronic applications, it supports a maximum contact rating of 0.4VA at 20V, with a mechanical life of 40,000 cycles and operating temperature from -40°C to 85°C.
MULTICOMP PRO MC1MS1T2B4V2RE Miniature Toggle Switch Specifications:
- Contact Configuration: SPDT, On-None-On
- Actuator Height: 5.08mm
- Bushing Height: 7.10mm, Keyway (Non-Threaded)
- Termination Height: 11.68mm, Vertical Bracket, PC Mount
- Contact Rating: 0.4VA Max. @20V Max. (AC or DC)
- Mechanical Life: 40,000 cycles
- Contact Resistance: 10mΩ max. Initial @ 2-4VDC / 100mA
- Insulation Resistance: 1,000MΩ min.
- Dielectric Strength: 1,000Vrms min. @ sea level
- Operating Temperature: -40°C to 85°C
- Material: Diallyl phthalate (DAP), Brass, Copper Alloy, Stainless Steel, Epoxy
- Switch Support: Brass, Tin Plated; Housing: Stainless Steel
- Soldering: Manual and wave soldering compatible with specified temperatures
- Switch Function: SPDT, On-None-On, Vertical, PCB mount
Buy the Buy multicomp switch Part Number MC1MS1T2B4V2RE Online
Discover the high-quality miniature toggle switch designed for precise electronic control with durable construction and versatile configurations. Ideal for PCB mounting, it features a compact design, SPDT switching, and robust materials such as brass, copper alloy, and stainless steel. Supporting a contact rating of 0.4VA at 20V, it delivers long-lasting performance with 40,000 cycles mechanical life. Suitable for various industries, it operates from -40°C to 85°C, ensuring dependable functionality in demanding environments. Purchase online now for fast delivery and competitive pricing.
Order your multicomp series MC1MS1T2B4V2RE toggle switch today and ensure reliable, compact electronic control for your projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC1MS1T2B4V2RE?
You can click on the BUY or RFQ button to purchase MC1MS1T2B4V2RE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC1MS1T2B4V2RE?
You can download the MC1MS1T2B4V2RE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC1MS1T2B4V2RE?
MULTICOMP PRO
