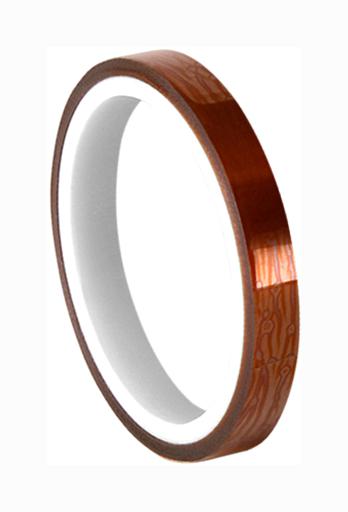

MULTICOMP PRO MP700349 Polyimide Silicone Tape
Polyimide film with silicone adhesive designed for high-temperature masking applications. It serves as a protective mask for gold fingers on PCBs during wave soldering or dip processes, and as a release surface in the fabrication of parts cured at elevated temperatures. Widely used for electrical insulation on transformers, motors, coils, and PCBs, this film is thin, conformable, and capable of masking uneven surfaces. It operates effectively up to 500°F, offers excellent electrical insulation, and can be removed cleanly without leaving adhesive residue after heat or chemical exposure. Meets UL-94V0 flammability standards. Available in film thicknesses of 2.0 mil and a total thickness of 3.5 mil.
MULTICOMP PRO MP700349 Polyimide Silicone Tape Specifications:
- Total Thickness: 3.5 mils
- Adhesive Thickness: 1.5 mils (silicone)
- Film Thickness: 2 mil
- Adhesive Color: Amber
- Operating Temperature Range: -40°F to 500°F
- Dielectric Strength: 11000 volts
- Elongation: 60%
- Adhesion to Steel: 22 oz/inch
- Break Strength: 50 Ibs/in
- Meets UL-94V0 flammability standard
- Conformable, thin design for masking uneven surfaces
- Clean removal without residue after exposure to heat or chemicals
Buy the Multicomp Series Polyimide Silicone Tape: MP700349
Order the high-temperature polyimide silicone tape online today to ensure reliable PCB masking, electrical insulation, and protection during high-heat manufacturing. This versatile tape, designed for coverage up to 500°F, features excellent conformability, clean removal, and meets UL-94V0 standards. Widely used in electronics, coil, transformer insulation, and circuit board fabrication, its durable silicone adhesive firmly attaches to various surfaces, providing excellent electrical insulation and thermal stability. Purchase now for effortless application and high-performance results in your electronic manufacturing processes.
Get Multicomp MP700349 today—built for high-temperature masking and electrical insulation in electronics manufacturing.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP700349?
You can click on the BUY or RFQ button to purchase MP700349 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP700349?
You can download the MP700349 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP700349?
MULTICOMP PRO
