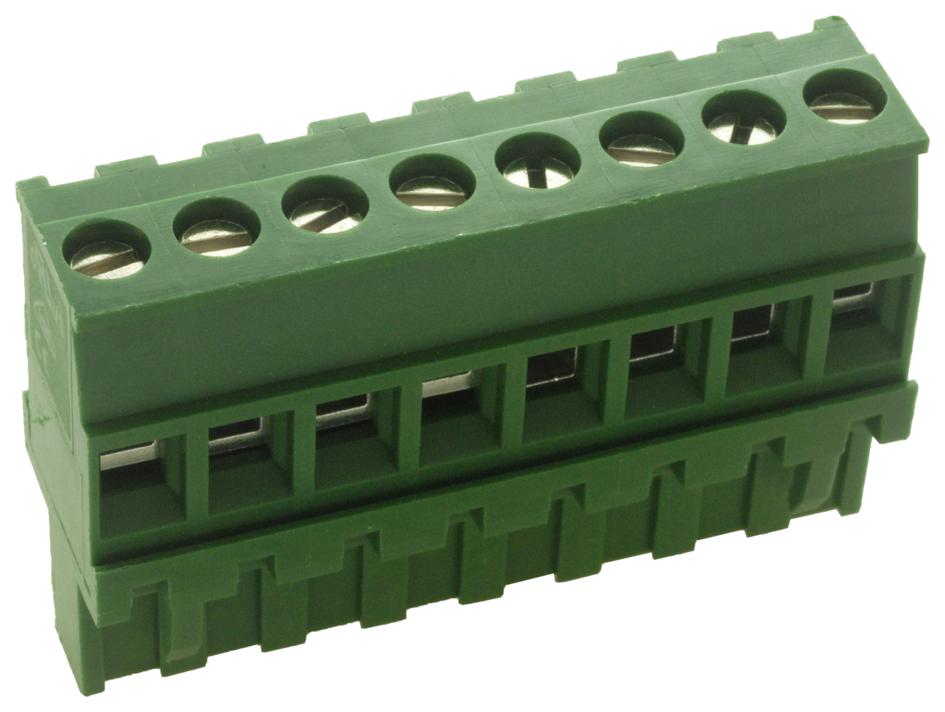

MULTICOMP PRO MC20050808 Terminal Block
The MC200-50808 is an 8-pole Euro-style pluggable terminal block featuring a 90-degree entry angle. This high-reliability series offers flexible, easy-to-install screw terminal connections designed for industrial automation and control systems. Capable of accommodating conductors up to 12 AWG, it ensures secure electrical connectivity without soldering. The terminal block’s robust construction includes polyamide insulators, phosphor tin plated bronze contacts, and steel screws with Ni plating. Suitable for applications requiring quick modifications, it supports operation temperatures from -40°C to +105°C and withstands voltages up to AC 300V, offering durability and reliability for complex electrical assemblies.
MULTICOMP PRO MC20050808 Terminal Block Specifications:
- Current Rating: 16Amp
- Insulation Withstands Voltage: AC 300V
- Insulation Resistance: >2,000MO DC 500V
- Operation Temperature: -40°C to +105°C
- Wire Range: 14AWG to 24AWG
- Screw Torque: 4.5lb-inch (approx. 0.1008 Nm)
- Material Body: Polyamide
- Contact Material: Phosphor Tin Plated Brass
- Clamp Material: Brass Ni Plated
- Screw Material: Steel Ni Plated
- Dimensions (mm): 20.32 (width for 4 poles), 40.64 (width for 8 poles)
- Poles: 8
- Part Number: MC200-50808
- RoHS Compliant
Buy the Multicomp Series Terminal Block: 8 Poles - MC20050808
Order the Multicomp Series 8-pole terminal block MC20050808 online today to ensure reliable, secure connections in your industrial automation projects. This high-quality terminal block features a robust polyamide body, phosphor tin plated brass contacts, and steel screws with Ni plating. Designed for easy installation, it accommodates conductors from 14 to 24 AWG and operates efficiently in temperatures from -40°C to +105°C. Whether updating existing systems or setting up new machinery, buy now for quick, hassle-free procurement and improved maintenance efficiency.
Buy Multicomp MC20050808 now and enjoy secure, easy-to-install electrical connections optimized for industrial control systems.
