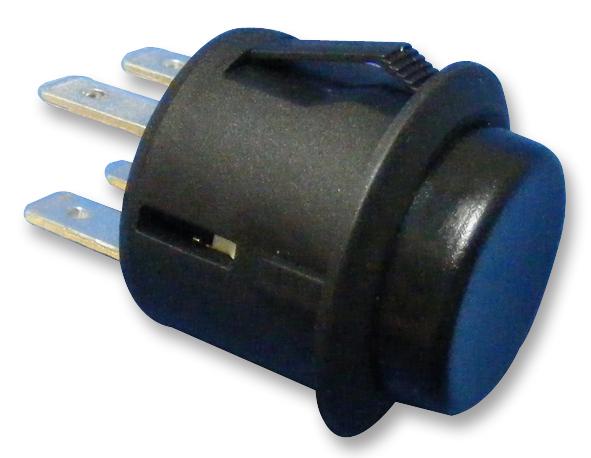

MULTICOMP PRO R13527A02BB Industrial Pushbutton Switch
The R13-527A-02-BB is a durable double-pole, single-throw momentary pushbutton switch with an ON-OFF operation, featuring silver alloy contacts and a nylon 66 frame for industrial use. It provides reliable switching with a maximum current of 16A at 125V and 6A at 250V, suitable for control panels, machinery, and automation systems. Designed with silver-plated copper alloy terminals and a robust nylon body, it ensures high insulation resistance of at least 100 MΩ DC 500V and dielectric strength of 1500VAC for safe operation across various environments. Its compact design fits easily into control enclosures, supporting reliable long-term performance.
MULTICOMP PRO R13527A02BB Industrial Pushbutton Switch Specifications:
- Current Rating: 16A at 125V, 6A at 250VAC
- Max. Contact Resistance: 50mΩ
- Min. Insulation Resistance: 100 MΩ DC 500V
- Dielectric Strength: 1500VAC 1 minute
- Operating Temperature: -25°C to 85°C
- Material: Frame Nylon 66 (94-V2), Actuator Nylon 66 / PC (94-V2)
- Terminals: Silver plated, copper alloy
- Contacts: Silver alloy
- Mounting Hole: 19.8 mm diameter
- Dimensions: Refer to diagram with millimeter measurements
Buy the Multicomp Series DPST ON-OFF Switch: R13-527A-02-BB
Enhance your control panel with the durable and reliable Multicomp industrial pushbutton switch. Featuring double-pole, single-throw operation with silver alloy contacts, it supports 16A at 125V and 6A at 250V AC. Designed with a nylon 66 frame and PC actuator for long-lasting performance in harsh environments. Its compact size ensures easy installation, making it ideal for machinery, automation, and industrial control systems. Order online today for quick delivery and superior functionality for your projects.
Buy Multicomp R13-527A-02-BB now and experience reliable control with high durability and precise switching for industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO R13527A02BB?
You can click on the BUY or RFQ button to purchase R13527A02BB from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part R13527A02BB?
You can download the R13527A02BB datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of R13527A02BB?
MULTICOMP PRO
