MULTICOMP PRO MC20416 green LED
The MC20416 is a green through-hole LED featuring a round lens and an integrated resistor. It delivers high intensity, reliable operation, and rugged durability, suitable for general-purpose and industrial applications. The LED operates at a forward voltage of around 2.2 to 2.5V and typically draws 20mA current, with a viewing angle of 60 degrees. It is RoHS compliant, with a maximum power dissipation of 100mW, a reverse voltage of 5V, and a temperature range of -25°C to 80°C. The product’s physical dimensions include a 5mm diameter lens and lead spacing measured at the leads exit point, ensuring easy installation in various electronic circuits.
MULTICOMP PRO MC20416 green LED Specifications:
- Lens Diameter: 5mm
- Color: Pure Green
- Peak Emission Wavelength: 568 nm
- Forward Voltage: 2.2 - 2.5 V
- Forward Current: 20 mA
- Reverse Voltage: 5 V
- Max Power Dissipation: 100 mW
- Viewing Angle: 60 degrees
- Operating Temperature Range: -25°C to 80°C
- Storage Temperature Range: -40°C to 100°C
- Lead Spacing: Measured at the point where leads exit the package
- RoHS Compliant
- Built-in 12V Resistor
- Lead Soldering Temperature: 260°C for 5 seconds

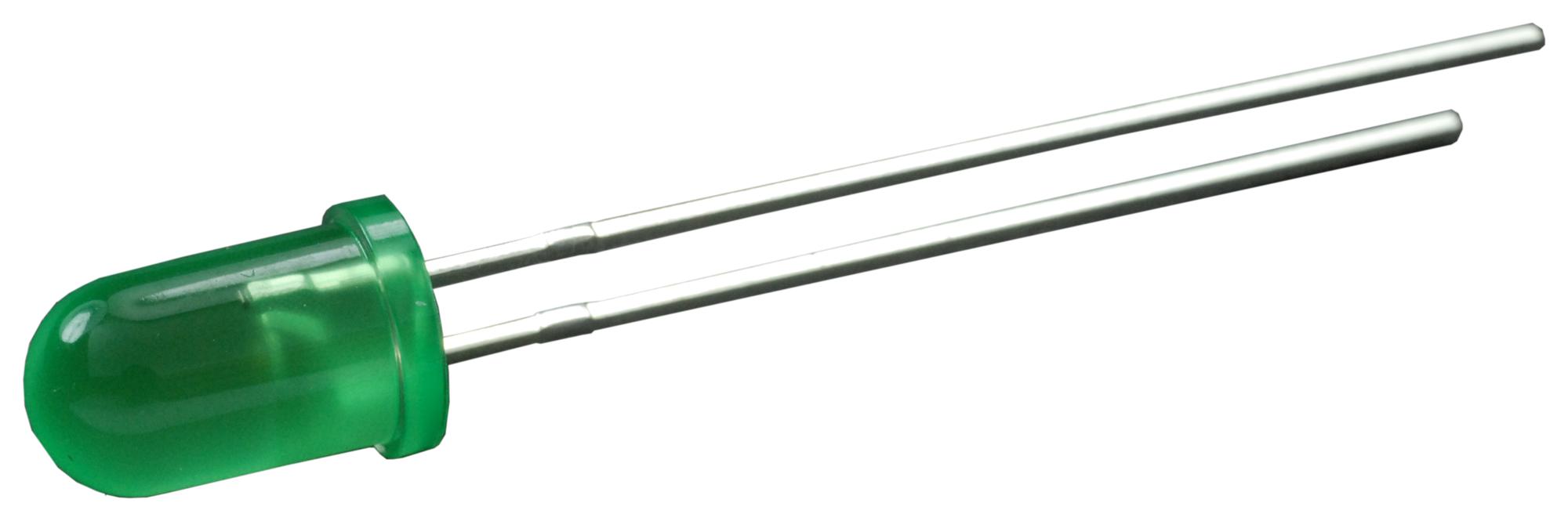

Buy the Buy Multicomp Pro 5mm Green LED Part Number MC20416 Online
Purchase the Multicomp Pro 5mm green LED with integrated resistor online today. Designed for reliability and high brightness, it is ideal for industrial and general electronic applications. This round lens LED operates at 2.2 to 2.5 volts forward voltage, with a 20mA current and a 60-degree viewing angle. Its durable construction supports a temperature range of -25°C to 80°C and complies with RoHS standards. Easy to install with measured lead spacing, it ensures efficient circuit integration and dependable performance.
Get Multicomp Pro MC20416 today—built for precise illumination and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC20416?
You can click on the BUY or RFQ button to purchase MC20416 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC20416?
You can download the MC20416 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC20416?
MULTICOMP PRO
