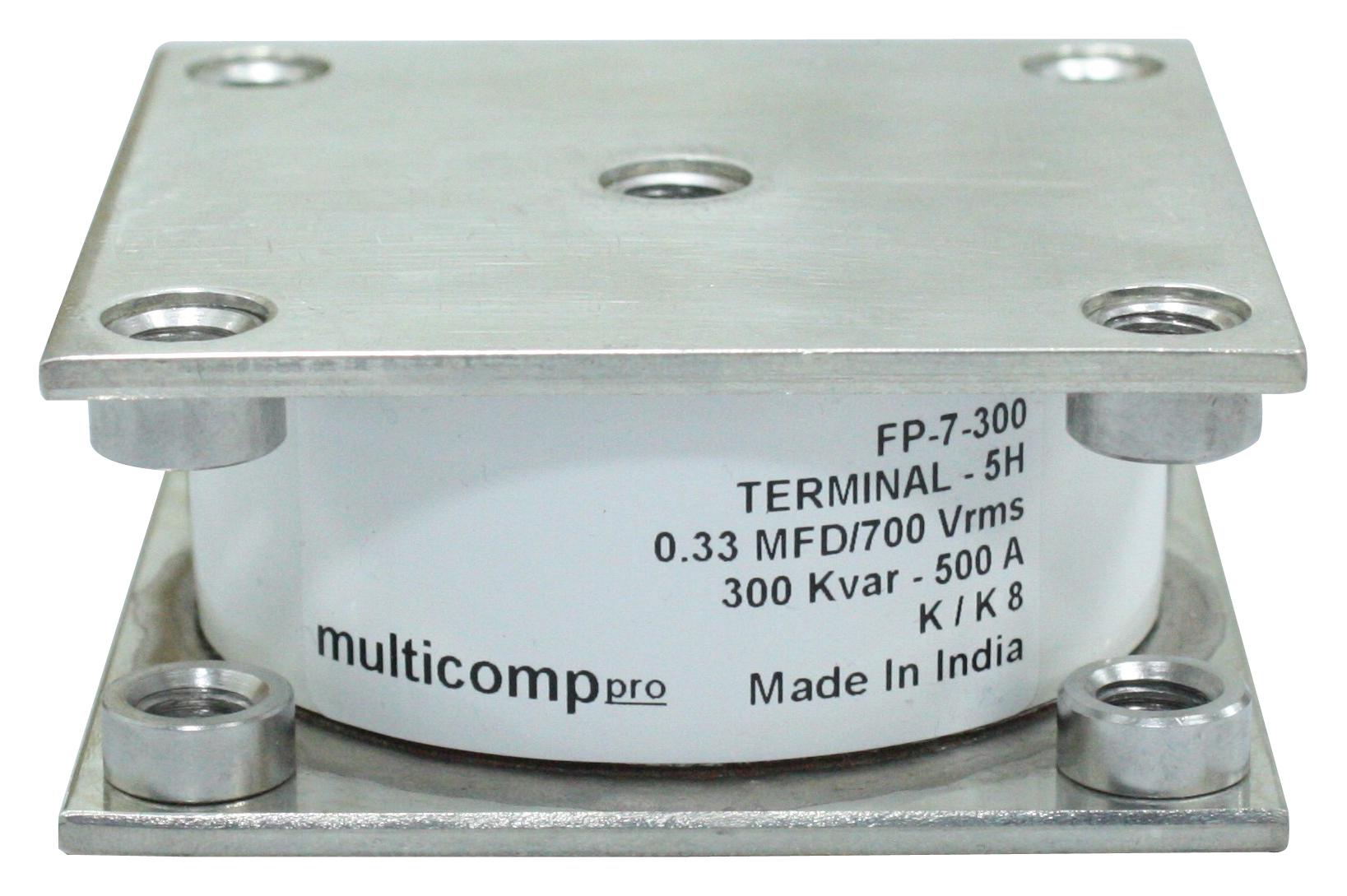

MULTICOMP PRO MP004095 Power Film Capacitor
Power film capacitors with screw and stud terminals designed for high-frequency applications up to 700 kHz. Features include polypropylene dielectric, self-healing, flame retardant UL94-V0, and conduction cooling. Rated for voltages up to 700 Vrms with capacitance values from 0.33 μF to 5 μF, offering high current capacity and impedance stability. Dimensions vary, with the terminal style specified as 5H, and maximum operating temperature of 85°C. Suitable for power electronics, filtering, and high-frequency circuits in industrial and commercial applications.
MULTICOMP PRO MP004095 Power Film Capacitor Specifications:
- Rated Voltage: 400-700 Vrms
- Capacitance Range: 0.33 - 5 μF
- Maximum Operating Temperature: 85°C
- Frequency Range: Up to 700 kHz
- Dielectric: Polypropylene
- Features: Self-healing, flame retardant UL94-V0
- Terminal Style: 5H
- Dimensions: Varies per model, details in datasheet
- Tightening Torque: 20 Nm max
- Impedance: Low ESR at specified frequencies
Buy the Buy Multicomp Power Film Capacitors Part Number MP004095 Online
Enhance your power electronics with our high-quality Power Film Capacitors featuring polypropylene dielectric, self-healing design, and UL94-V0 flame retardant properties. Rated up to 700 Vrms and suitable for frequencies up to 700 kHz, these capacitors deliver reliable performance in filtering and power management applications. Designed with screw and stud terminals, they ensure secure connections with a tightening torque of 20 Nm max. Perfect for industrial, commercial, and high-frequency circuit applications, ensuring durability and efficiency.
Get Multicomp MP004095 today—built for high-frequency power filtering and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004095?
You can click on the BUY or RFQ button to purchase MP004095 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004095?
You can download the MP004095 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004095?
MULTICOMP PRO
