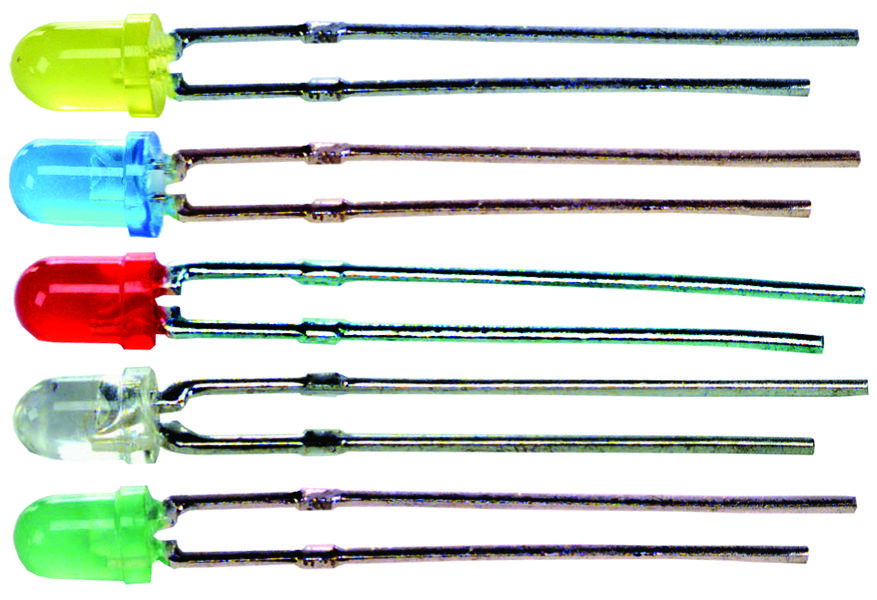

MULTICOMP PRO MC20448 Yellow 3mm LED
This yellow emitting 3mm standard LED features a cylindrical flat top lens, ideal for general-purpose indicator applications. It offers high intensity light with a viewing angle of 120 degrees, a peak emission wavelength of 590 nm, and a dominant wavelength of 585 nm. The LED operates at a forward current of 20 mA with a forward voltage of 2.2-2.5 V and has an absolute maximum power dissipation of 80 mW. Suitable for applications requiring reliable, rugged illumination in a compact 3mm package, it complies with RoHS standards and has a temperature range of -25°C to +80°C.
MULTICOMP PRO MC20448 Yellow 3mm LED Specifications:
- Diameter: 3mm
- Lens Type: Cylindrical flat top
- Source Colour: Yellow
- Chip Material: AlGaAs
- Peak Emission Wavelength: 590 nm
- Dominant Wavelength: 585 nm
- Luminous Intensity: 20 mcd at 20 mA
- Viewing Angle: 120 degrees
- Forward Voltage: 2.2-2.5 V at 20 mA
- Forward Current: 20 mA
- Peak Forward Current: 100 mA (1/10 duty cycle, 0.1 ms pulse)
- Power Dissipation: 80 mW
- Reverse Voltage: 5 V
- Operating Temperature Range: -25°C to +80°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperatures: 260°C for 5 seconds
- RoHS Compliant
Buy the Multicomp Yellow LED 3mm – Reliable Indicator for Industrial Applications
Purchase the multicomp yellow 3mm cylindrical flat top LED online today for high-quality, reliable illumination solutions perfect for indicator lights and display panels. Designed with a 120-degree viewing angle and a peak wavelength of 590 nm, this LED provides bright and consistent performance in various industrial environments. Its rugged construction ensures durability, while RoHS compliance guarantees environmental safety. Whether for manufacturing, electronic projects, or maintenance systems, order now to enhance your equipment with this proven, efficient LED component. Easy online ordering and fast delivery available to meet your project timelines.
Buy multicomp yellow 3mm LED now and experience unmatched reliability and bright indication for industrial and electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC20448?
You can click on the BUY or RFQ button to purchase MC20448 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC20448?
You can download the MC20448 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC20448?
MULTICOMP PRO
