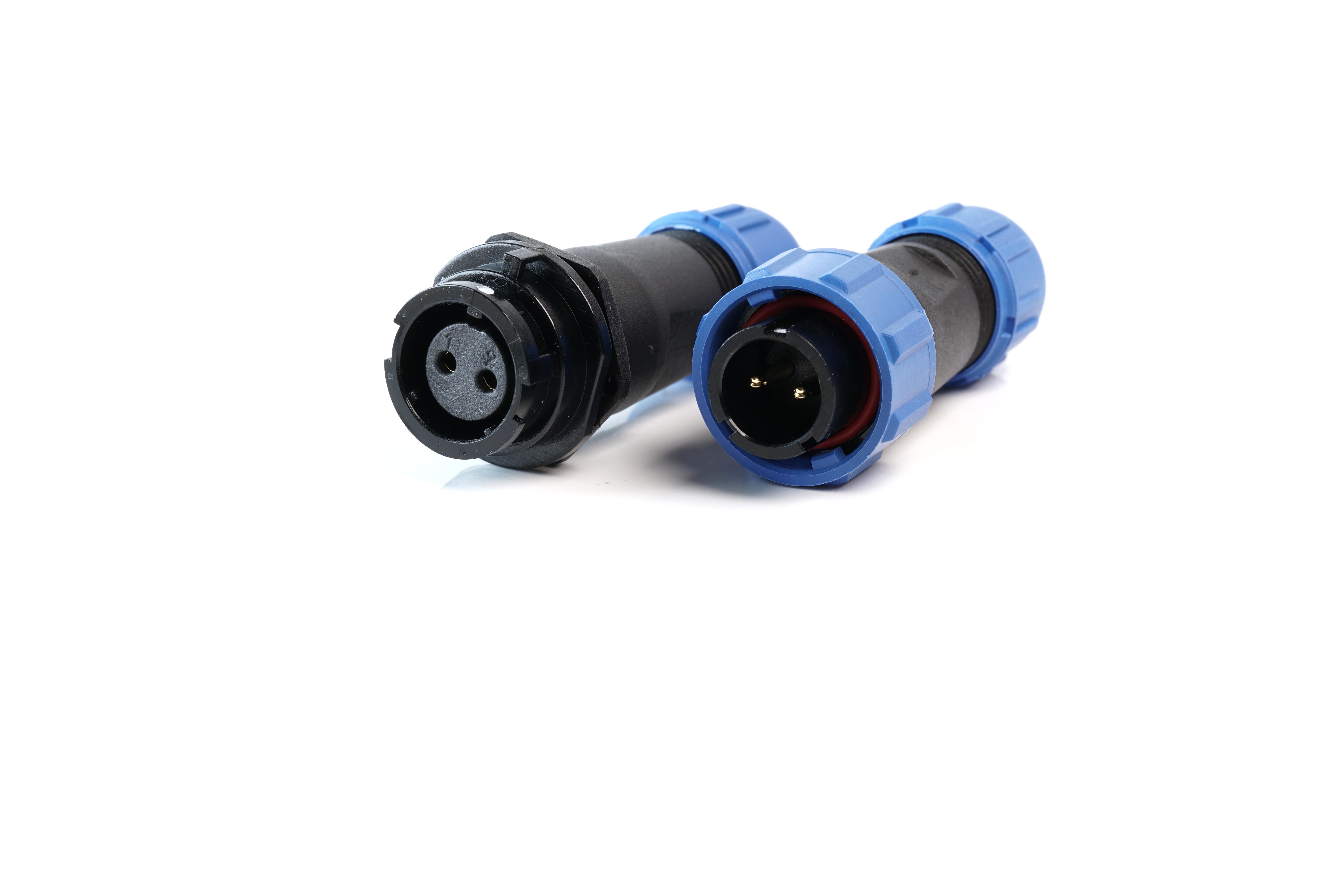

MULTICOMP PRO MP002641 Industrial Connectors
The MP-T13 IP67 series provides robust, weatherproof connectors designed for quick, secure connections in automation, control, and industrial environments. These connectors feature bayonet coupling for easy mating, are available in panel mount, cable mount, and inline configurations, and support multiple pole options of 2, 3, 4, 5, and 7. Crafted with durable nylon66 shells, PPS inserts, and gold-plated brass contacts rated for a maximum of 13A and voltages up to 250V, they withstand temperatures from -40°C to +80°C and offer IP67 sealing for protection against dust and water. Solder termination ensures reliable electrical contact, and a weatherproof cap completes the complete sealing solution, ideal for outdoor applications requiring high durability and reliability.
MULTICOMP PRO MP002641 Industrial Connectors Specifications:
- Material: Nylon66 shell, PPS insert, gold-plated brass contacts
- IP Rating: IP67
- Temperature Range: -40°C to +80°C
- Rated Current: 13A
- Rated Voltage: 250V
- Termination: Solder
- Contact Diameter: 1.6mm, 1mm, 1mm (depending on configuration)
- Number of Contacts: 2, 3, 4, 5, 7
- Mating Cycle: 500
- Cable Outer Diameter Range: 4mm to 6.5mm / 5mm to 8mm
- Dimensions: Fit 13mm panel cutout, millimeter sizes vary by connector type
- Locking: Bayonet coupling
- Fire Resistance: V-0
- Shell Material: Nylon66
- Back Shell, Locking Nut, Compressing Nut, Retaining Nut: Nylon66
Buy the Multicomp Series IP67 Connector: MP002641
Purchase the Multicomp IP67 connectors MP002641 online and ensure your outdoor and industrial applications have reliable, weatherproof electrical connections. With durable nylon66 shells, soldered brass contacts, and a bayonet coupling for quick, secure mating, these connectors are ideal for automation, security, and process control. They support multiple configurations with up to 7 poles, rated for 13A at 250V, and feature an IP67 rating for dust and water resistance. Perfect for outdoor machinery, control panels, and electrical systems needing robust, long-lasting components.
Get Multicomp IP67 connector MP002641 today—designed for high durability, quick assembly, and reliable outdoor performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002641?
You can click on the BUY or RFQ button to purchase MP002641 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002641?
You can download the MP002641 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002641?
MULTICOMP PRO
