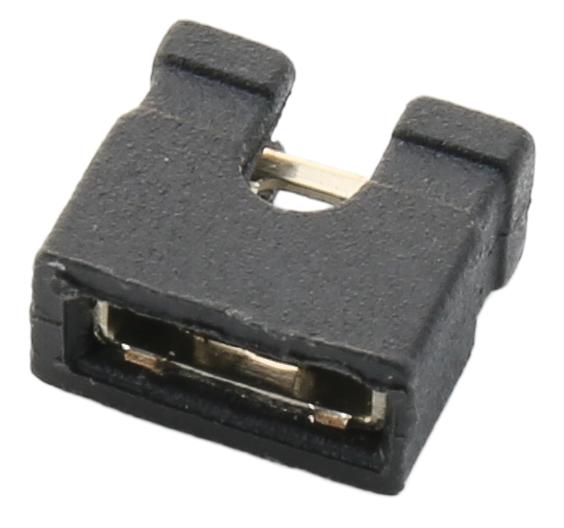

MULTICOMP PRO MC2228AG Mini Jumper
The 2.54mm Mini Jumper is an essential connector in electronic and prototyping applications, offering reliable open or close type connections with UL94V-0 rated PBT or Nylon 6.6 insulators, and gold-plated phosphor bronze contacts for high durability. It supports a current rating of 3A AC/DC and voltage of 250V AC/DC, with excellent resistance to insulation resistance and withstand voltage. Operating efficiently within -40°C to +105°C, this mini jumper is RoHS compliant, compact, easy to use, and suitable for configuring circuit connections on printed circuit boards (PCBs).
MULTICOMP PRO MC2228AG Mini Jumper Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature: -40°C to +105°C
- Material: PBT (UL94V-0) / Nylon 6.6 (UL94V-0)
- Contact Material: Phosphor Bronze
- Plating: Gold
- Dimensions: 2.54mm pitch, sizes vary by type
- RoHS Compliant
Buy the Multicomp 2228AG – Reliable Circuit Jumper for Industrial Applications
Purchase the Mini Jumper designed for dependable circuit connections and prototyping on PCB boards. Featuring gold-plated contacts, UL94V-0 rated insulators, and supporting up to 3A current at 250V, this compact and durable connector ensures excellent performance in industrial and electronics applications. Its operating temperature range from -40°C to +105°C guarantees reliability in varied environments. Easy to install, RoHS compliant, and suitable for open or close type setups, making it your ideal choice for efficient circuit configuration and maintenance.
Get Multicomp 2228AG today—built for precision and long-lasting durability in PCB connections and electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC2228AG?
You can click on the BUY or RFQ button to purchase MC2228AG from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC2228AG?
You can download the MC2228AG datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC2228AG?
MULTICOMP PRO
