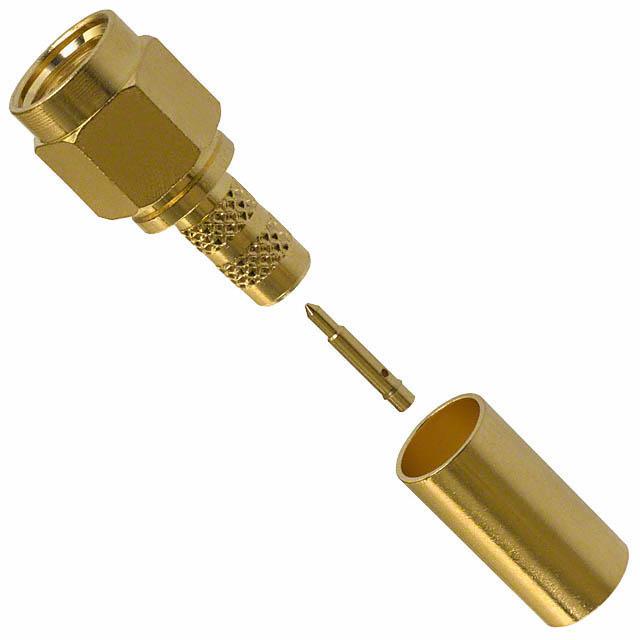

MULTICOMP PRO MC23546 RF coaxial connector
The MC23546 is a straight crimp SMA connector designed for RF communication and industrial applications. It features a gold-plated zinc body, gold-plated brass center contact, and PTFE insulation for stability and durability. Capable of operating within -65°C to 165°C, it supports frequencies up to 12.4 GHz, with a maximum VSWR of 1.28, and a working voltage of 500V. The connector includes a crimp ferrule, adheres to MIL-5TD-348A interface standards, and is suitable for use with RG142U or similar coaxial cables, ensuring reliable signal integrity in various environments.
MULTICOMP PRO MC23546 RF coaxial connector Specifications:
- Frequency Range: DC to 12.4 GHz
- Nominal Impedance: 50 ohms
- Working Voltage: 500 Volts Max.
- Proof Voltage: 1000 Volts
- VSWR: 1.28 Max
- Materials: Body: Zinc Gold, Centre Contact: Brass Gold, Insulation: PTFE
- Dimensions: Suitable for RG142U cable, crimp ferrule, 4.6 mm hex crimp tool, operating temperature range from -65°C to +165°C
- Interface: MIL-5TD-348A compliant
- Cable Retention: 40 lbs Min.
- Recommended Crimp Size: 5.6 mm hex, 0.92 mm square crimp tool
Buy the Multicomp UART – Reliable RF Coaxial Connector for Industrial Applications
Order the RF coaxial connector now and ensure reliable signal transfer for your communication and industrial systems. The MC23546 features gold-plated components, a robust PTFE insulator, and supports frequencies up to 12.4 GHz. Designed for durability, it offers a VSWR of 1.28, operates within -65°C to 165°C, and can handle up to 500V. Perfect for RF applications, this connector ensures excellent performance with easy crimping for secure attachment, making it an ideal choice for professionals.
Get Multicomp MC23546 today—built for precision, durability, and high-frequency performance in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC23546?
You can click on the BUY or RFQ button to purchase MC23546 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC23546?
You can download the MC23546 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC23546?
MULTICOMP PRO
