MULTICOMP-PRO MC23561 RF Connector
The MC23561 SMA right-angle crimp plug features durable brass construction with gold plating, PTFE insulation, and a silicone gasket designed for high-frequency RF connections up to 12.4 GHz. It supports a maximum working voltage of 500V and withstands extreme temperatures from -65°C to 165°C, making it ideal for RF communication systems. Compatible with RG142U cables, it provides reliable signal integrity with a VSWR of 1.4 max and easy crimping with brass ferrules. This versatile connector ensures long-lasting durability and high performance in demanding environments, suitable for aerospace, defense, and telecommunications applications.
MULTICOMP-PRO MC23561 RF Connector Specifications:
- Frequency Range: DC-12.4 GHz
- Nominal Impedance: 50 Ω
- Working Voltage: 500V Max.
- Proof Voltage: 1,500V
- VSWR: 1.4 Max.
- Materials: Brass body, Brass centre contact, PTFE insulation, Brass crimp ferrule
- Cable Attachment: Crimp outer, Solder/crimp inner
- Recommended Torque: 3 to 5 in-lbs.
- Crimp Size: 5.6 (.221) hex. crimp tool
- Operating Temperature: -65°C to +165°C
- Finish: Gold-plated contacts and shell
- Includes: Silicone gasket, brass components

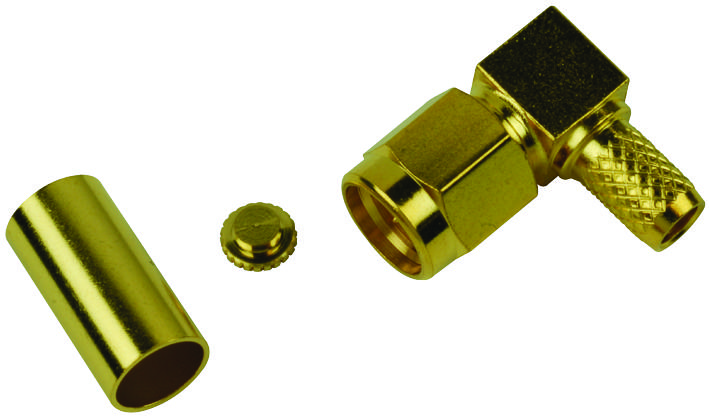

Buy the Buy Multicomp SMA Right Angle Plug Part Number MC23561 Online
Purchase the Multicomp SMA right-angle connector online today for premium RF performance and easy installation. Crafted from high-quality brass with gold plating, it ensures excellent signal integrity up to 12.4 GHz. Its PTFE insulation and robust construction support a voltage of 500V and operate reliably from -65°C to 165°C. Compatible with RG142U cables, this connector is suitable for aerospace, defense, and communications systems. Enjoy fast delivery, competitive pricing, and confidence in a long-lasting, professional-grade RF connection solution.
Get Multicomp MC23561 today—designed for high-frequency RF applications with reliable durability and excellent temperature tolerance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC23561?
You can click on the BUY or RFQ button to purchase MC23561 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC23561?
You can download the MC23561 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC23561?
MULTICOMP-PRO
