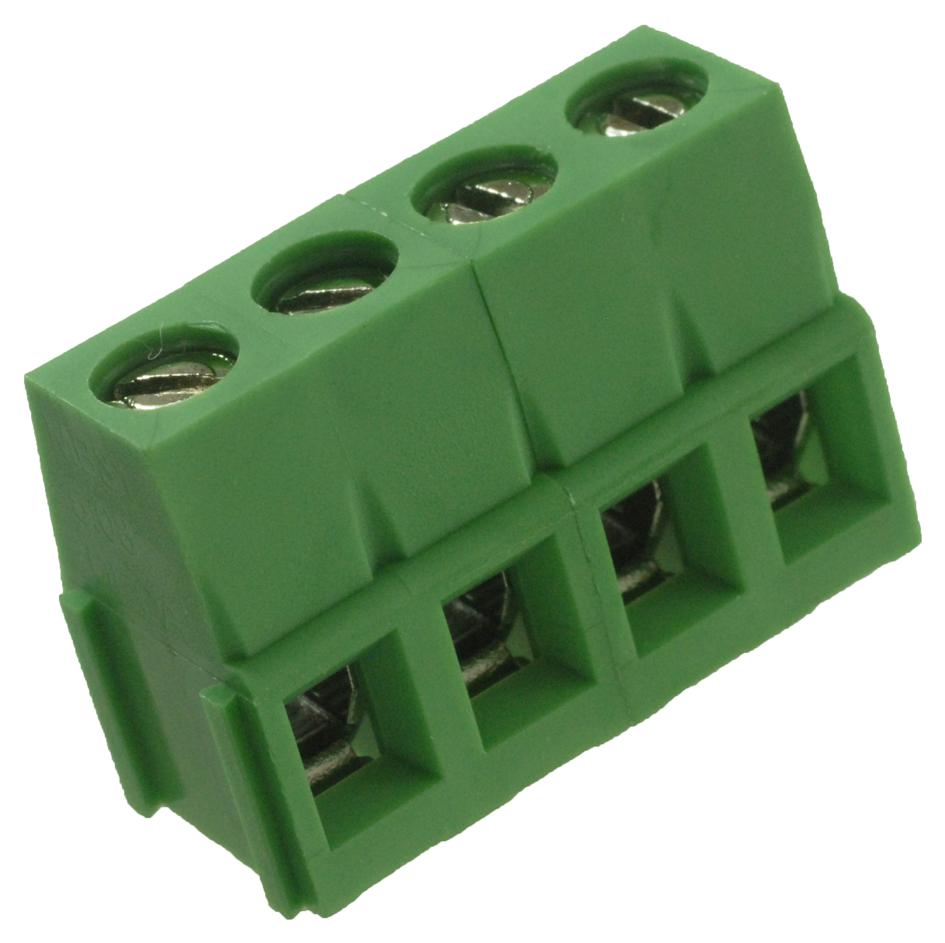

MULTICOMP PRO MC24368 wire-to-board terminal block
The MC24368 is a four-way wire-to-board terminal block rated for 16A, featuring through-hole, right-angle mounting with screw terminal connections. It has tin-plated brass contacts, a polyamide 66 housing, and nickel-plated steel cage clamps and screws. The component complies with UL94V-0 flammability standards and is suitable for operating temperatures ranging from -40°C to 105°C. Designed for industrial applications, it is part of Multicomp Pro's product range, which is rated highly by users and comes with a 12-month limited warranty.
MULTICOMP PRO MC24368 wire-to-board terminal block Specifications:
- Rated Voltage: AC 300V
- Rated Current: 16A
- Wire Size: 26 AWG to 12 AWG
- Housing Material: Polyamide 66
- Contact Material: Tin-plated Brass
- Cage Clamp Material: Steel, Ni Plated
- Terminal Type: Screw terminal
- Screw Size: M2.6, Steel, Ni Plated
- Operating Temperature: -40°C to +105°C
- Flammability: UL 94V-0
- Mounting: Through-hole, Right-angle
- Dimensions: 5.08mm pitch (0.2 inches)
Buy the Buy Multicomp Terminal Block Part Number MC24368 Online
Enhance your electrical assemblies with the Multicomp Pro MC24368 four-way terminal block. Rated for 16A, it features screw terminal connections, a durable polyamide 66 housing, and nickel-plated steel clamps and screws. Suitable for operating temperatures from -40°C to 105°C, this UL94V-0 rated component ensures safety and reliability. Its through-hole, right-angle design makes it ideal for industrial automation, control systems, and PCB applications. Order online now for fast, dependable delivery for your project needs.
Order your Multicomp Pro MC24368 terminal block today and ensure reliable, high-current connections for industrial circuit board projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC24368?
You can click on the BUY or RFQ button to purchase MC24368 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC24368?
You can download the MC24368 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC24368?
MULTICOMP PRO
