MULTICOMP PRO MC23592 RF Coaxial Connector
The MC23592 SMA straight bulkhead jack connector is designed for RF applications up to 6 GHz, supporting RG-174, RG-188, and RG-316U cables. Made with a brass body and beryllium copper center contact, it features a PTFE insulator for excellent dielectric properties. The connector offers crimp termination for reliable cable attachment, with a maximum working voltage of 335V and an impedance of 50 ohms. Its durable construction ensures suitability for communications, aerospace, defense, and military systems, providing secure, high-frequency signal transmission in demanding environments.
MULTICOMP PRO MC23592 RF Coaxial Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: DC to 6 GHz
- Maximum Working Voltage: 335 Volts
- Proof Voltage: 750 Volts
- VSWR: 1.27 Max.
- Body Material: Brass
- Center Contact: Beryllium Copper with Gold plating
- Insulation Material: PTFE
- Crimp Ferrule Material: Brass with Gold plating
- Cable Compatibility: RG-174, RG-188, RG-316U
- Operating Temperature Range: -65°C to +165°C
- Crimp Size: Contact 0.92 (0.036) Sq., Ferrule 3.5 (0.138) Hex.
- Mounting: Bulkhead with crimp and solder options
- Connector Type: SMA straight bulkhead jack

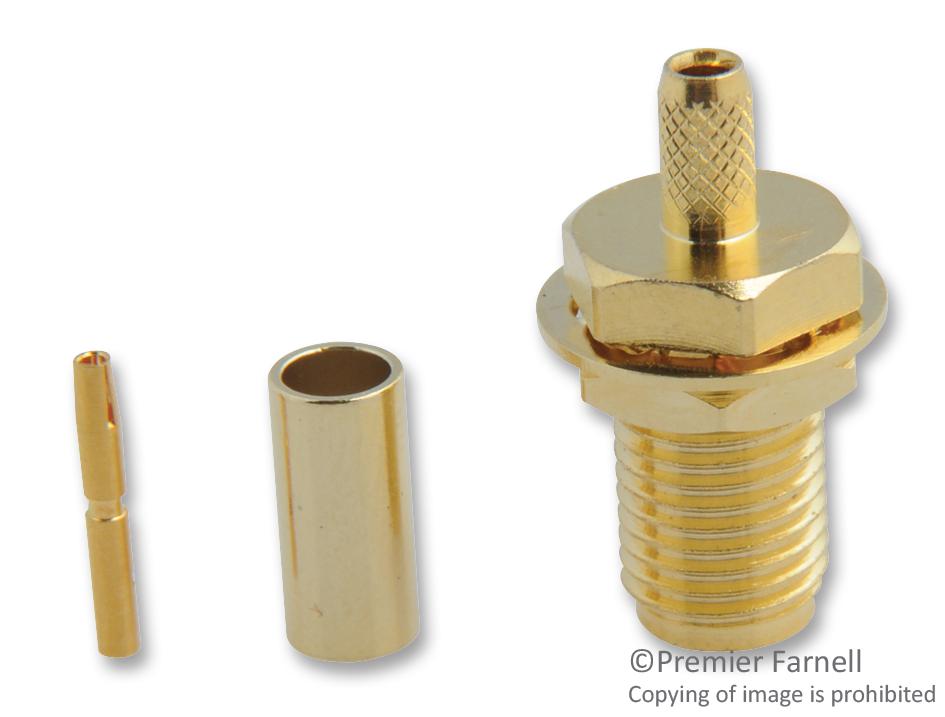

Buy the Buy Multicomp SMA Straight Bulkhead Jack Part Number MC23592 Online
Purchase the Multicomp SMA straight bulkhead jack MC23592 online to enhance your RF and coaxial cable setups. This connector supports frequencies up to 6 GHz, ensuring superior signal integrity for communications, aerospace, and military applications. Its rugged brass body and gold-plated beryllium copper center contact guarantee excellent durability and corrosion resistance. Designed for crimp mounting, it provides a secure, vibration-resistant connection. Whether for high-performance antennas, test equipment, or military installations, buying online ensures you receive a quality component quickly and conveniently, suitable for professional and demanding technical environments.
Order your Multicomp SMA Straight Bulkhead Jack MC23592 today and ensure high-frequency performance for your RF projects with reliable crimp connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC23592?
You can click on the BUY or RFQ button to purchase MC23592 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC23592?
You can download the MC23592 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC23592?
MULTICOMP PRO
