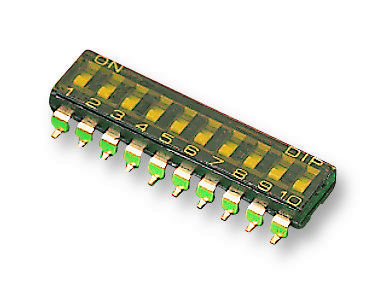

MULTICOMP PRO MCEMR10TVTR Stackable DIP Switch
The MCEMR Series stackable DIP switches are high-reliability, industrial-grade components designed for control and telecommunication applications. Featuring SPST contact arrangement with gold contacts, these switches support 2, 25mA, 24VDC ratings and boast a life cycle of 2,000 cycles. They operate from -20°C to +85°C, with storage temperatures up to -40°C. The series includes various pole configurations from 2 to 12, with dimensions tailored for easy mounting in control panels and circuit boards, providing dependable switching performance in industrial environments.
MULTICOMP PRO MCEMR10TVTR Stackable DIP Switch Specifications:
- Contact Arrangement: SPST + End stackable
- Number of Poles: 2, 3, 4, 5, 6, 7, 8, 9, 10, 12
- Contact Rating: 25mA, 24VDC
- Contact Resistance: 100mΩ Max.
- Insulation Resistance: 100MΩ Min., 500V DC
- Dielectric Strength: 500V AC/1 minute
- Operating Force: 1,000gf max
- Travel: Imm
- Operating Life: 2,000 cycles
- Operating Temperature: -20°C to +85°C
- Storage Temperature: -40°C to +85°C
- Dimensions: Varies by model, with lengths from approximately 4.98mm to 30.38mm, widths from 2.54mm to 27.94mm
- RoHS Compliant
Buy the Buy Multicom Multicompr Series MCEMR10TVTR Part Number MCEMR10TVTR Online
Discover the reliable and high-quality MCEMR Series stackable DIP switches suitable for industrial control and telecommunication devices. Featuring gold contacts for high reliability, these switches support multiple pole configurations from 2 to 12, with a cycle life of 2,000 operations. Designed for easy installation, they operate from -20°C to +85°C and are RoHS compliant. Whether for automation or control panels, this versatile switch series delivers dependable performance for demanding environments. Purchase online now for fast delivery and seamless integration into your projects.
Order your Multicom Series MCEMR10TVTR stackable DIP switch today and enhance your industrial control systems with reliable switching performance.
